RNS 315 Radio Navigation System Overview
RNS 315 Radio Navigation System Overview

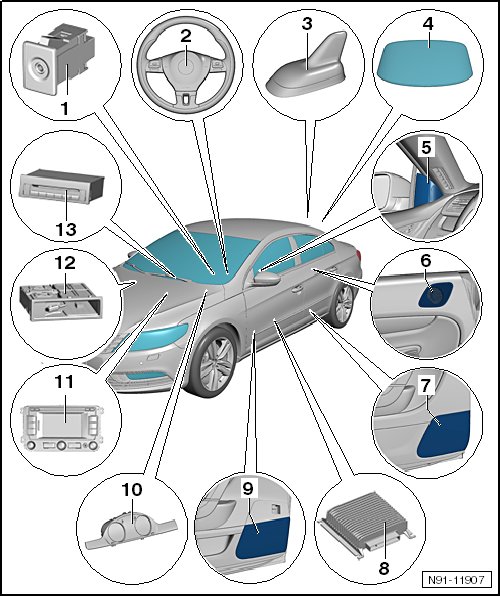

1 External Audio Source Connection (R199)
• Located inside the storage compartment under the center armrest.
• Additional information can be found in => [ External Audio Source Connection R199 ] External Audio Source Connection R199.
2 Left Multifunction Buttons On Steering Wheel (E440) and Right Multifunction Buttons On Steering Wheel (E441)
• Additional information can be found in => [ Multifunction Steering Wheel/Radio/Navigation System ] Description and Operation.
3 Roof Antenna (RX5)
• Located on the roof at the back of the vehicle.
• Installed only if, in addition to the radio, a telephone is installed at the factory
• Additional information can be found in => [ Antenna System, Standard Version, Overview ] Antenna System, Standard Version, Overview.
4 Antenna (R11) and Radio Antenna 2 (R93)
• Inside the rear window.
• AM and FM antenna with diversity function.
• Additional information can be found in => [ Antenna System, Standard Version, Overview ] Antenna System, Standard Version, Overview.
5 Left Front Treble Speaker (R20) and Right Front Treble Speaker (R22)
• Inside the left and right front mirror triangle.
• Additional information can be found in => [ Speakers ] Service and Repair.
6 Left Rear Treble Speaker (R14) and Right Rear Treble Speaker (R16)
• Installed inside the left and right rear door trim panels.
• Additional information can be found in => [ Speakers ] Service and Repair.
7 Left Rear Bass Speaker (R15) and Right Rear Bass Speaker (R17)
• Installed inside the left and right rear doors.
• Additional information can be found in => [ Speakers ] Service and Repair.
8 Digital Sound System Control Module (R12)
• Optional
• Installed under the left front seat.
• Additional information can be found in => [ Amplifier R12 ] Service and Repair.
9 Left Front Bass Speaker (R21) and Right Front Bass Speaker (R23)
• Installed inside the left and right front doors.
• Additional information can be found in => [ Speakers ] Service and Repair.
10 Instrument Cluster Control Module (J285)
11 Radio/RNS (RX1)
• RNS 315
• Removing and installing, refer to => [ Radio/Navigation Systems ] Radio/Navigation Systems.
• Connector overview, refer to => [ Connector Assignments ] [1][2]Connector Views.
• Anti-theft coding, refer to => [ RNS 315 Radio Navigation System ] RNS 315 Radio Navigation System.
12 External Multimedia Device Interface (R215)
• Located inside the glove compartment.
• Additional information can be found in => [ External Multimedia Device Interface R215 ] External Multimedia Device Interface R215.
• It is not possible to have a CD changer (R41) if the vehicle has an external multimedia device interface because they both have the same installed location.
13 CD Changer (R41)
• Located inside the glove compartment.
• Additional information can be found in => [ CD Changer R41 ] Service and Repair.
• It is not possible to have a CD changer if the vehicle has an External multimedia device interface (R215) because they both have the same installed location.
