Locks: Locations

Central Locking System

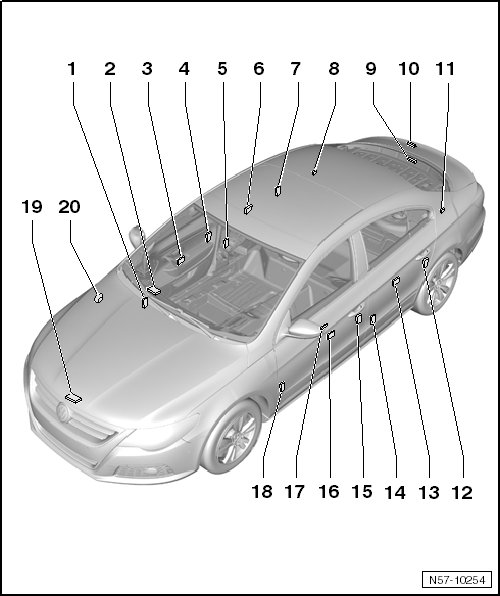

Central Locking System Overview







1 Coupling station
• Location: A-pillar, right
2 Comfort System Central Control Module -J393-
• Tire Pressure Monitoring Control Module -J502- integrated.
• Location: Under instrument panel, front passenger side.

Note:
• For 2012 MY,Tire pressure monitoring control module -J502- is located behind rear bumper cover

• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations
3 Front Passenger Door Control Module -J387-
• Integrated in Front Passenger Window Regulator Motor -V148-
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations
4 Front Passenger Door Central Locking Lock Unit -F221- => [ Front Door Lock ] See Image Below.
• Door lock is secured to subframe.
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations
5 Coupling station
• Location: B-pillar, right.
6 Right Rear Door Control Module -J389-
• integrated in Right Rear Window Regulator Motor -V27-
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations
7 Right Rear Central Locking Lock Unit -F223-
• Door lock is secured to subframe => [ Rear Door Lock ] See Image Below.
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations
8 Fuel Tank Lid Unlock Motor -V155-
• Location: Behind right luggage compartment trim.
9 Rear Lid Handle Unlock Switch -E234-
• Component location: In brand emblem
Central Locking System Overview continued





10 - Rear Lid Lock Unit -F256-
• Location: Bolted on rear lid => [ Rear Lid Lock ] See Image Below.
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations

11 - Rear lid coupling station
• Location: Behind left luggage compartment trim.

12 - Left Rear Central Locking Lock Unit -F222-
• Door lock is secured to subframe => [ Rear Door Lock ] See Image Below.
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations

13 - Left Rear Door Control Module -J388-
• Integrated in Left Rear Window Regulator Motor -V26-
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations

14 - Coupling station
• Location: B-pillar, left

15 - Driver Door Central Locking Lock Unit -F220-
• Door lock is secured to subframe => [ Front Door Lock ] See Image Below.
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations

16 - Driver Door Control Module -J386-
• Integrated in Driver Window Regulator Motor -V147-
• Anti-Theft Alarm System Assembly Overview locationLocations

17 - Central Window Regulator Switch (in driver's door) -E189-
• Location: installed in door trim

18 - Coupling station
• Location: left A-pillar

19 - Front Hood Switch -F266-
• Location: On lid lock
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations

20 - Alarm horn -H12-
• Location: Under right fender
• Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations

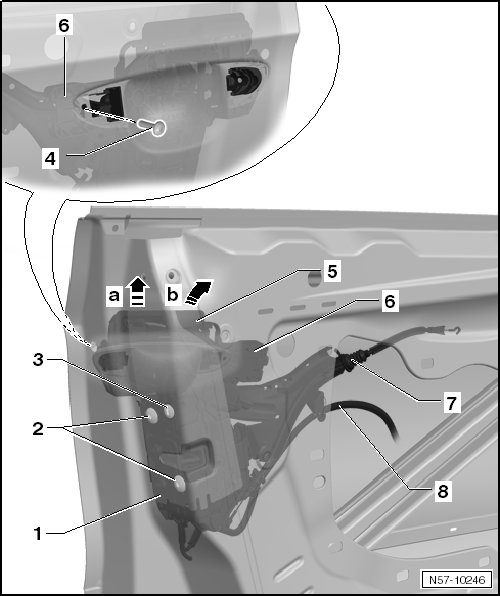

Front Door Lock






1 - Front Door Lock
The driver and passenger door lock is integrated with the following:
• Driver Door Central Locking Lock Unit -F220-

• Driver Door Central Locking System Switch -F59-

• Driver Door Central Locking System Motor -V56-

• Driver Door Contact Switch -F2-

• Driver Door Central Locking (Safe) Motor -V161- (if applicable)

• Front Passenger Door Central Locking Lock Unit -F221-

• Front Passenger Door Contact Switch -F3-

• Front Passenger Door Central Locking System Motor -V57-

• Front Passenger Central Locking (Safe) Motor -V162- (if applicable)

Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations

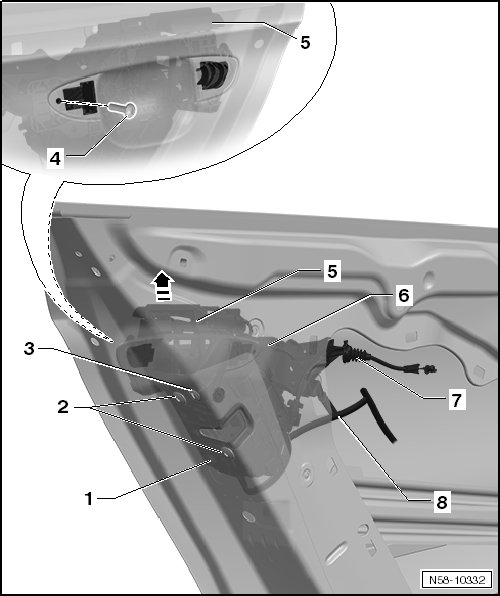

Rear Door Lock






1 - Rear Door Lock
The rear door lock is integrated with the following:
• Left Rear Door Contact Switch -F10-

• Left Rear Central Locking (Lock) Motor -V214-

• Left Rear Central Locking Lock Unit -F222-

• Left Rear Central Locking (Safe) Motor -V163- (if applicable)

• Right Rear Door Contact Switch -F11-

• Right Rear Central Locking (Lock) Motor -V215-

• Right Rear Central Locking Lock Unit -F223-

• Right Rear Central Locking (Safe) Motor -V164- (if applicable)

Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations

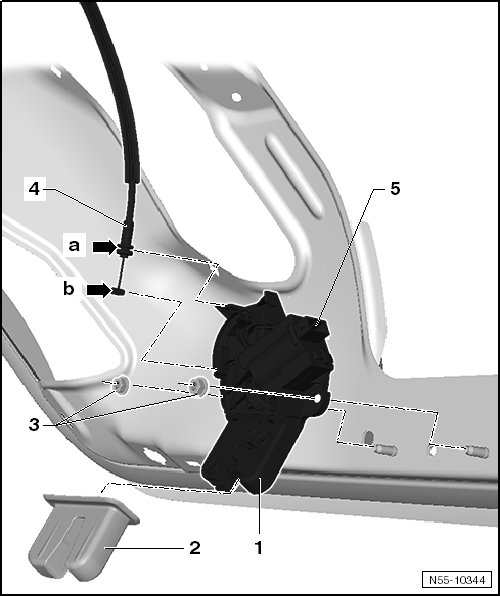

Rear Lid Lock






1 - Rear Lid Lock
The rear lid lock unit is integrated with the following:
• Rear Lid Lock Unit -F256-

• Rear Lid Central Locking System Motor -V53-

• Luggage Compartment Lamp Switch -F5-

Anti-Theft Alarm System Assembly Overview location => [ Anti-Theft Alarm System Assembly Overview ] Locations
