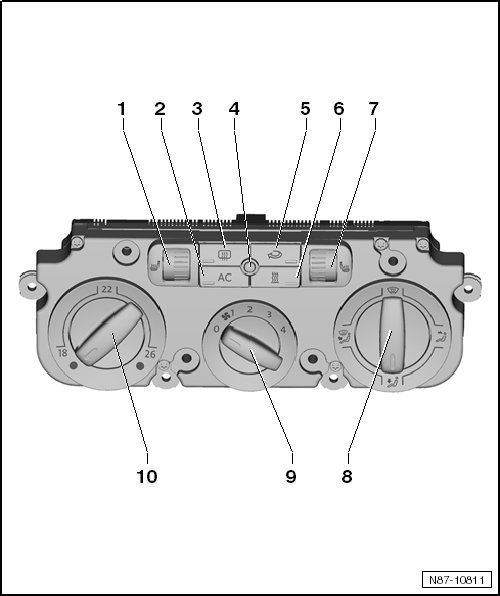

Display and Control Unit Overview, Climatic for Passat from MY 06

Display and Control Unit Overview, Climatic for Passat from MY 06






1 Left Seat Heater Control

2 AC Button

• Press the AC button to turn the A/C on or off.

• When the light in the button is on, the air conditioner compressor is switched on.

3 Rear Window Defogger Button

4 Infrared Sensor For Passenger Compartment Temperature

5 Recirculating Air Mode Button

• Press button for recirculating air function to prevent polluted air from entering interior.

6 Immediate Heating Button (E537)

• Does not apply to the USA or Canada.

7 Right Seat Heater Control

• The seat heating as 3 settings. An LED indicates which setting is selected.

• If no LED is illuminated, the seat heater is switched off.

8 Air Distribution Control

9 Blower Speed Control

• To the left: decreases the blower speed.

• To the right: increases the blower speed.

10 Temperature Setting Control

• To the left: lower the temperature.

• To the right: increases the temperature.
