Climatic (Manual Climate Control) System Overview

Climatic / Climatronic System Overview

Climatic System Overview

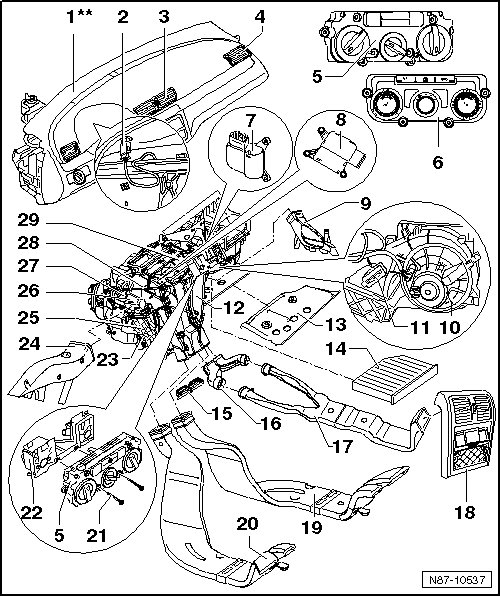

1 Instrument panel **
2 Center Outlet Temperature Sensor -G191-
3 Center vents
4 Right side vent
5 Controls for heating and A/C system, Climatic
• Passat from MY 2006
• With A/C control module -J301-
6 Controls for heating and A/C system, Climatic
• Passat CC from MY 2009
7 Fresh/Recirculating Air Door Motor -V154-
8 Air distribution door motor -V428-
• with air distribution door motor position sensor -G645-
• Passat CC from MY 2009
9 Right footwell vent
10 Fresh Air Blower -V2-
• Location on Climatronic System Overview => [ (Item 13) ] Climatronic (Automatic Climate Control) System Overview
11 Fresh Air Blower Series Resistor With Fuse -N24-
12 Evaporator Vent Temperature Sensor -G263-
• Location on Climatronic System Overview => [ (Item 15) ] Climatronic (Automatic Climate Control) System Overview
13 Heating unit partition
14 Dust and pollen filter
15 Sealing caps
• Only in vehicles without air guide to vent installed in center console at rear
Climatic System Overview continued





16 - Connection
• For air duct, rear vent

17 - Air duct to rear vent

18 - Rear vent

19 - Rear channel for right footwell

20 - Rear channel for left footwell

22 - Adapter for controls
• Passat from MY 2006

23 - Auxiliary Air Heater Heating Element -Z35-
• Not applicable to US/CDN
• Location on Climatronic System OverviewClimatronic (Automatic Climate Control) System Overview

24 - Left footwell vent

25 - Heat exchanger

26 - Footwell Outlet Temperature Sensor -G192-

27 - Temperature Regulator Door Motor -V68-
• with Temperature Regulator Door Motor Position Sensor -G92-

28 - Flexible shaft
• Passat from MY 2006

29 - Heating and A/C unit
