Inner Mounting Tab, Repairing

Inner Mounting Tab, Repairing

- Switch off the ignition and all electrical consumers and move the ignition key or start button into the 0 position (preliminary engaged position).

• During removal and installation, leave ignition key with remote control inside the vehicle to prevent the doors from locking and possibly activating the "Coming Home / Leaving Home" functions on its own.

- Remove the headlamp. Refer to 357 => [ Headlamp ] Headlamp or 358 => [ Headlamp ] Headlamp.

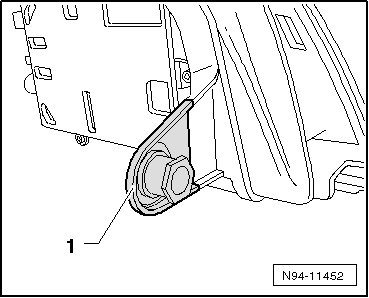

- Remove the rest of the old headlamp mounting tab - 1 - as illustrated.






Preparing the repair tab






• The repair tab can break off.

• Because the banjo fitting cuts its own threads when it is installed in the repair tab, insert it gently in the repair tabs.

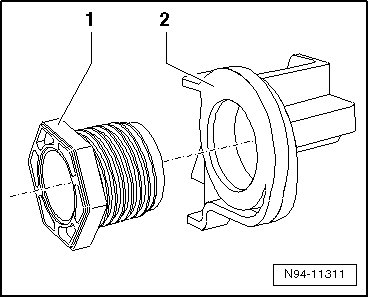

• Install the banjo fitting - 1 - straight into the repair tab - 2 - before mounting the repair tab on the headlamp housing.

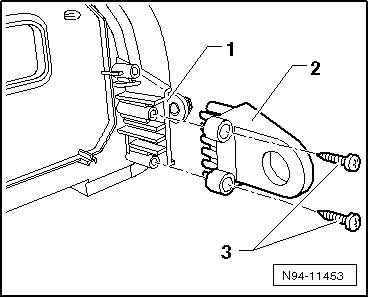

- Insert the new repair tab - 2 - into the mount - 1 - on the headlamp and secure the tab with the bolts - 3 -.






Bolt tightening specification: 1.4 Nm.

- Install the headlamp.

• If one headlamp is removed, it must always be adjusted after installation.

Adjust the headlamp.
