Crankshaft, Cylinder Block - Fastener Tightening Specifications

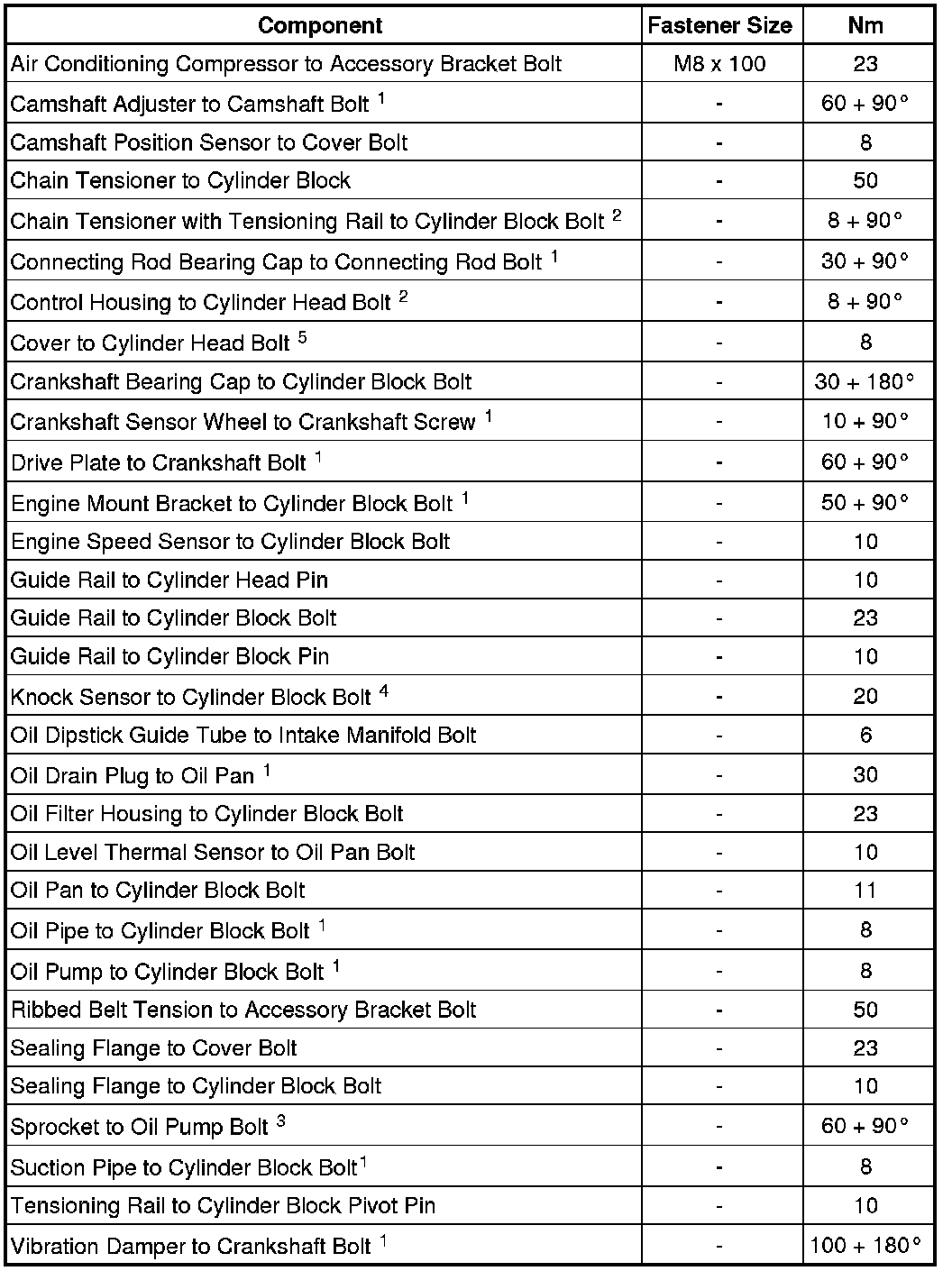

Fastener Tightening Specifications






• 1 Always replace

• 2 Install the bolts using liquid locking fluid (D 000 600 A2)

• 3 Only use bolts with a strength category of 10.9

• 4 The tightening specification affects the function of the knock sensor

• 5 Tighten in a diagonal sequence and in steps

Accessory Bracket Bolt Tightening Sequence and Specification






- Install and tighten the bolts - 2 and 4 - hand tight.

- Install and tighten the bolts - 1, 3 and 5 - hand tight.

- Tighten all the bolts in a diagonal sequence to 23 Nm.
