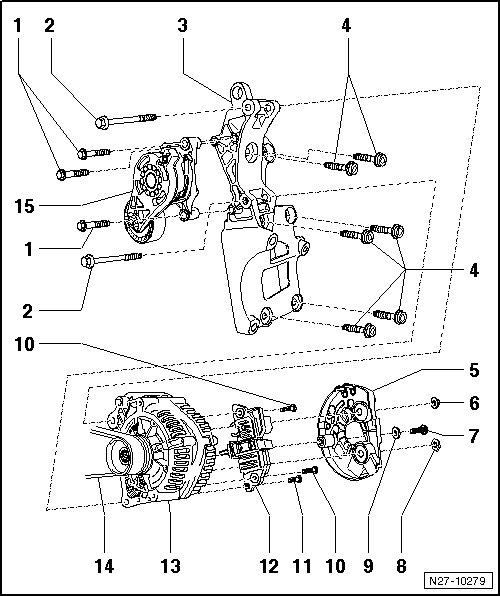

Generator Overview

Generator Overview






1 Collar Bolts

• 23 Nm

• M8 x 45

2 Collar Bolts

• 23 Nm

• M8 x 90

3 Accessories Bracket

• For generator and A/C compressor.

• Tightening sequence, refer to => [ Generator Tightening Specifications ] [1][2]Alternator.

- Removing and installing the A/C compressor accessories bracket

4 Collar Bolts

• 45 Nm

• M10x45

5 Cap

6 Hex Head Collar Nut

• M8

Tightening specification, refer to => [ Generator Tightening Specifications ] [1][2]Alternator.

7 Phillips Head Screw

• 4.5 Nm

• M5 x 21

8 Flat Hex Nut

• M8

Tightening specification, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.

9 Washer

• M5

10 Phillips Head Screws

• 2 Nm

• M4 x 19

11 Phillips Head Screw

• 2 Nm

• M4 x 13

12 Voltage Regulator

• Removing and installing voltage regulator, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.

13 Generator

• Generator, removing and installing, refer to => [ Generator ] Generator.

14 Ribbed Belt

• Checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection.

• Ribbed belt routing.

• Ribbed belt, removing and installing, refer to => [ Generator ] Generator.

15 Tensioner For Ribbed Belt

- Tensioner, removing and installing.
