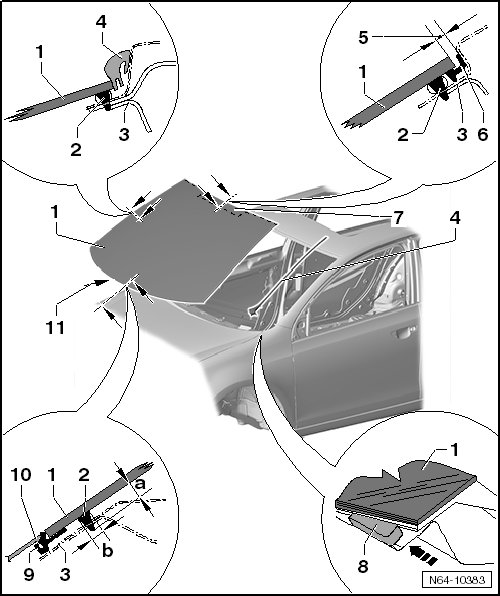

Windshield Assembly Overview

Windshield Assembly Overview






1 Windshield

• Removing windshield, refer to => [ Windshield ] Windshield

2 PUR Adhesive Sealant

• Bead diameter: width = 6.5 mm, height = 10 mm (including pre-coating, residual material on window glass and window flange)

• Minimum curing time, refer to => [ Minimum Curing Time ] Minimum Curing Time

3 Body Flange

4 Drip Rail

• Removing and Installing, refer to => [ Drip Rail ] Drip Rail

5 Gap Dimension

• From window edge to roof edge

• Set a constant dimension of 2.5 mm using adjustment gauge (3371)

6 Sealing lip

• Is a part of the windshield

• It will get damaged when removing the windshield.

• Install a new sealing lip.

7 Interior Rearview Mirror

8 Window Adjuster

• 443.845.631 A

9 Retainer

• Is a part of the windshield

10 Plenum Chamber Cover

• Must only be pulled out of binding profile by hand.

11 Adhesive Bead End

• Apply the adhesive bead in this area
