Communications Control Module: Service and Repair

Cell Phone Operating Electronics Control Module (J412)

The cell phone operating electronics control module is located under the fright front seat.

• Switch off the ignition and all electrical consumers.

• Remove the key.

Removing

- Move the right front seat into its highest position and the move it all the back.

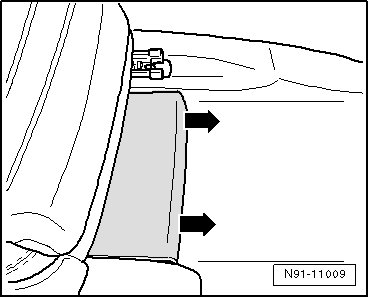

- Remove the cover under the seat in - direction of arrow -.






- Disconnect the connectors from the cell phone operating electronics control module.

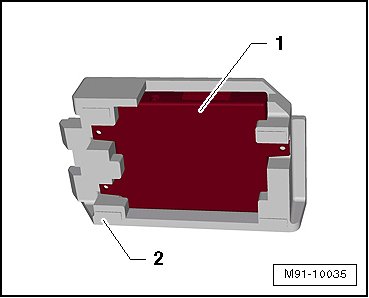

- Remove the cell phone operating electronics control module - 1 - from the foam insert - 2 -.






Installing

Install in reverse order of removal.

Overview, refer to => [ Cellular Telephone Preparation Overview ] Cellular Telephone Preparation Overview.
