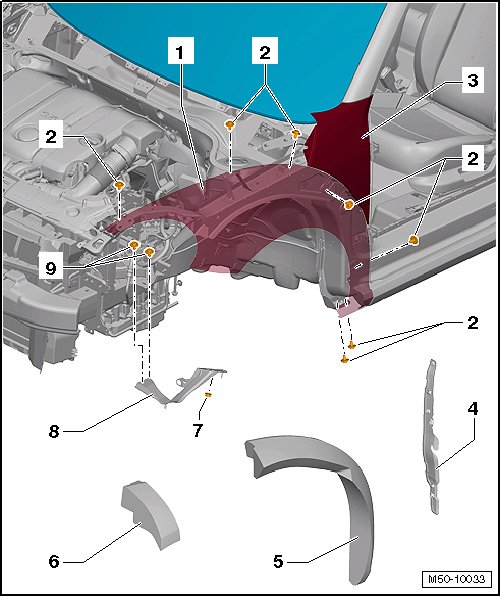

Front Fender Assembly Overview

Front Fender Assembly Overview

• The illustration shows a left door hinge. The right door hinge is identical.






1 Front fender

• Removing and Installing, refer to => [ Front Fender ] Front Fender

2 Bolt

• Quantity 1: A-pillar

• Quantity 1: wheel housing

• Quantity 2: sill panel

• Quantity 3: fender connecting piece

• Tightening specification: 6 Nm

3 Front upper fender

• Assembly Overview, refer to => [ Front Upper Fender Assembly Overview ] Front Upper Fender Assembly Overview

• Removing and Installing, refer to => [ Front Upper Fender ] Front Upper Fender

4 Front fender end plate

• Removing and Installing, refer to => [ Front Fender End Plate ] Front Fender End Plate

5 Noise insulation

• Inserted between the front fender and the upper A-pillar longitudinal member, refer to => [ Fender and Fender Bar Piece Noise Insulation ] Fender and Fender Bar Piece Noise Insulation

• Not installed in all models

6 Front fender noise insulation

• Inserted between the fender and the wheel housing longitudinal member, refer to => [ Fender and Fender Bar Piece Noise Insulation ] Fender and Fender Bar Piece Noise Insulation

• Not installed in all models

7 Nut

• Quantity 1; fender brace

• Tightening specification: 6 Nm

8 Fender brace

• Removing and Installing, refer to => [ Fender Brace ] Fender Brace

9 Bolt

• Quantity: 2

• Tightening specification: 6 Nm
