Front Upper Fender Assembly Overview

Front Upper Fender Assembly Overview

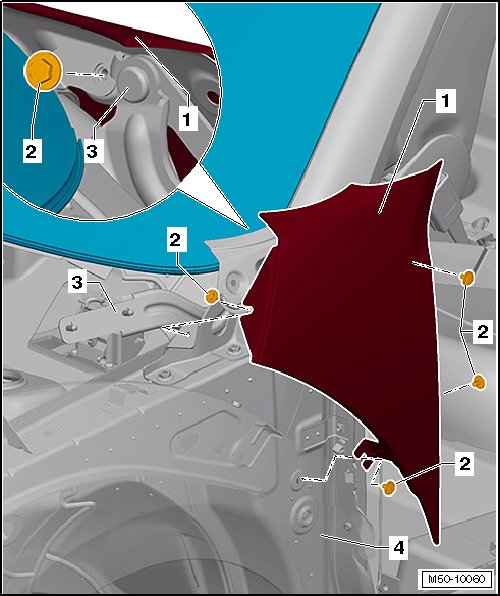

• The illustration shows a left door hinge. The right door hinge is identical.






1 Front upper fender

• Removing and Installing, refer to => [ Front Upper Fender ] Front Upper Fender

2 Bolt

• Quantity 2: A-pillar

• Quantity 1: wheel housing

• 2 Piece hinge for the hood

• Tightening specification: 6 Nm

3 Hood hinge

4 Front fender

• Assembly Overview, refer to => [ Front Fender Assembly Overview ] Front Fender Assembly Overview

• Removing and Installing, refer to => [ Front Fender ] Front Fender
