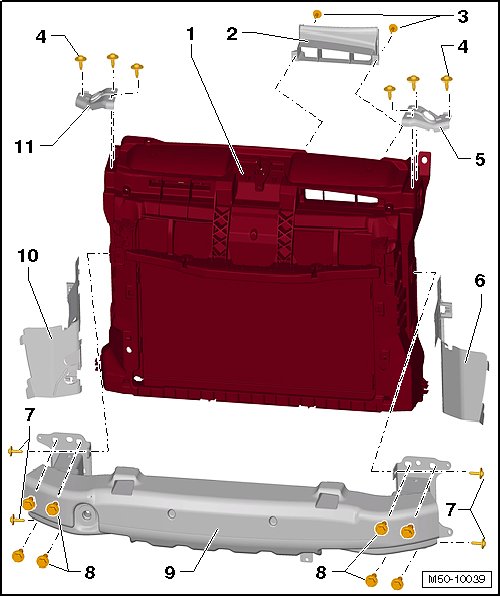

Lock Carrier Assembly Overview

Lock Carrier Assembly Overview






1 Lock carrier with attachments

• Removing and Installing, refer to => [ Lock Carrier with Attachments ] Lock Carrier with Attachments

• Service position, refer to => [ Lock Carrier Service Position ] Lock Carrier Service Position

2 Air guide channel

3 Bolt

• Quantity: 2

• Tightening specification: 2 Nm

4 Bolt

• 3 on each side

• Tightening specification: 8 Nm

5 Angle bracket

• Left

6 Air duct

• Left

7 Bolt

• 2 on each side

• Tightening specification: 8 Nm

• For attaching the bumper carrier - 9 - to the lock carrier - 1 -

8 Bolt

• 4 on each side

• Tightening specification: 60 Nm

9 Bumper carrier

10 Air duct

• Right

11 Angle bracket

• Right
