Procedures

Engine, Securing to the Engine and Transmission Holder

Special tools, testers and auxiliary items required

• Lifting Tackle (3033)

• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)

• Engine and Transmission Holder (VAS 6095)

• Engine Lateral Bracket (T03001)

• Transport Arm (T03002)

When performing repair work, secure the engine using the engine lateral bracket (T03001) to the engine and transmission holder (VAS 6095).

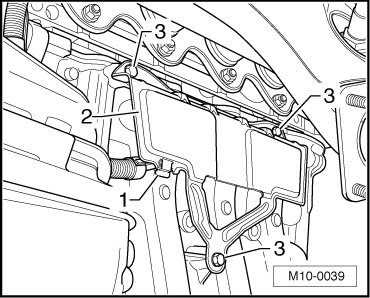

- Remove the wiring harness clip - 1 -, remove the bolts - 3 - and remove the cover plate - 2 -.

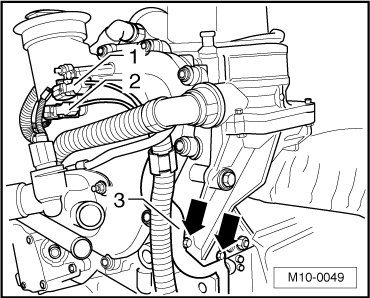

- Disconnect the harness connectors - 1 and 2 - and remove the bracket - 3 - bolts - arrow -.

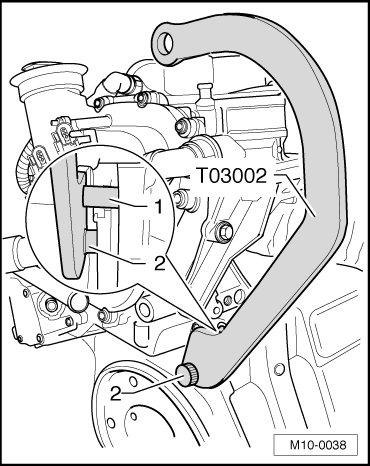

- Install the transport arm (T03002) as shown.






The pin - 1 - engages in the cylinder block. Tighten the knurled thumb screw - 2 - hand tight.

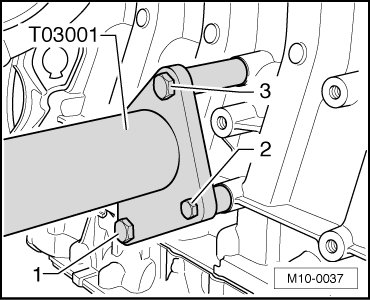

- Install the engine lateral bracket (T03001) to the cylinder block.






Tighten the bolts - 1 and 3 - to 40 Nm, and the bolt - 2 - to 25 Nm.

• The volts are designed so that they cannot be lost.

• When removing, the engine lateral holder (T03001) must be held tense in the direction of removal, otherwise the bolt - 1 - cannot be removed.

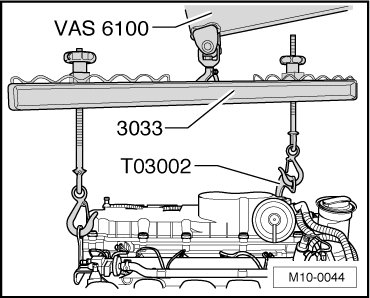

- Install the lifting tackle (3033) to the cylinder block, as illustrated and lift the engine from the engine and transmission holder (V.A.G 1383 A) using the shop crane - load cap = 700-1200 KG (VAS 6100).






- Secure the engine to the engine and transmission holder (VAS 6095).
