Instruments

Outside Air Temperature Sensor (G17)

The (G17) is installed in the front bumper trim.

• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the noise insulation.

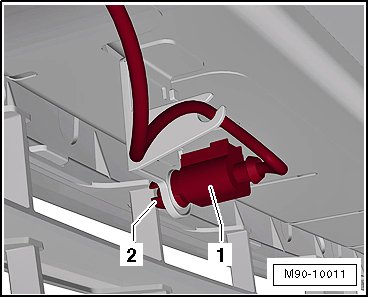

- Disconnect the connector - 1 -.






- Remove the outside air temperature sensor - 2 - from the mount on the bumper trim panel.

Installing

Install in reverse order of removal.
