Wheel Alignment Specified Values, Vehicles with Multi-Link Rear Suspension

Wheel Alignment Specified Values, Vehicles with Multi-Link Rear Suspension

Specified values valid for all engine versions.

• PR number explanations, refer to => [ Vehicle Data Label ] Application and ID.

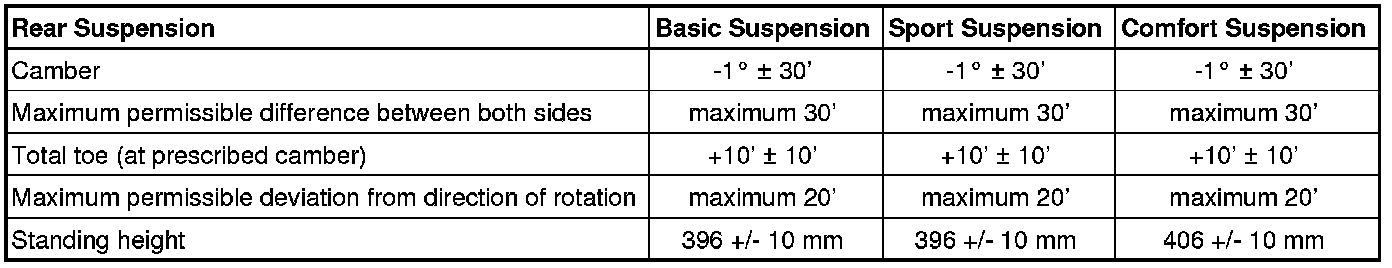

Standing heights listed in the tables refer to dimension - a -.

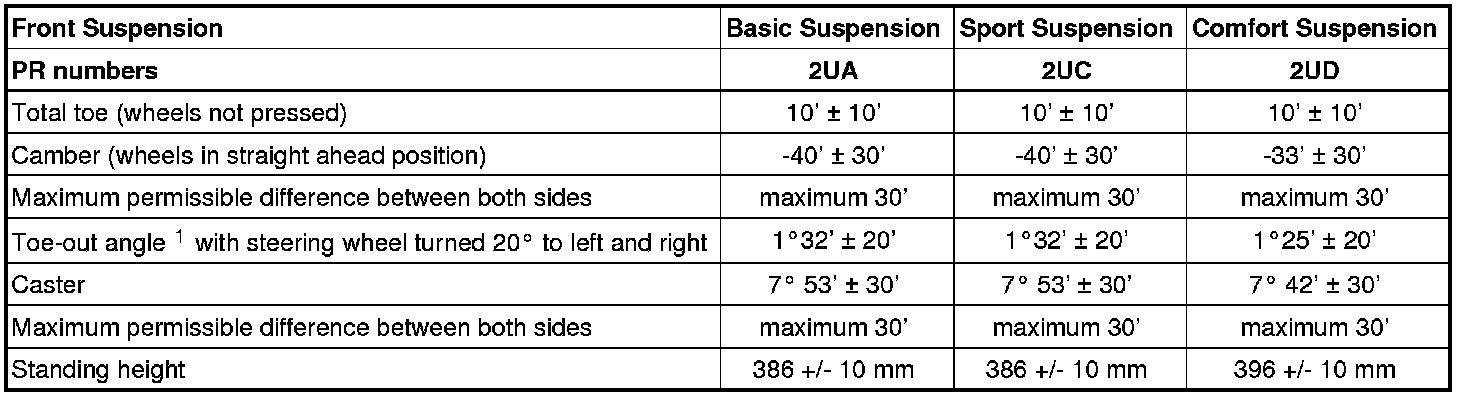

1 The toe angle difference can also be indicated negatively in alignment computer, depending on manufacturer.

Specified values valid for all engine versions.

• For an explanation of the PR number, refer to => [ Vehicle Data Label ] Application and ID.
