Relay Carrier on Vehicle Electrical System Control Module

Relay

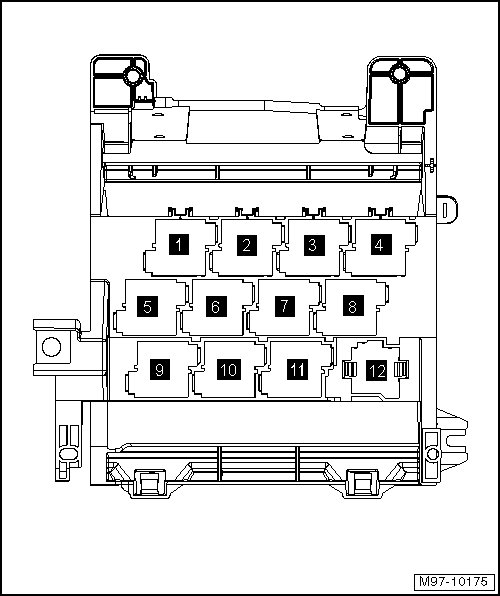

Relay Carrier on Vehicle Electrical System Control Module


Relay Carrier on Vehicle Electrical System Control Module





1 - Alarm horn relay -J641- (646)
• Fuse location 1

2 - Starter relay 2 -J907- (507)
• Fuse location 2

3 - Fuel pump relay -J17- (646)
• Fuse location 3

3 - Fuel pump relay 2 -J49- (646)
• Fuse location 3

3 - Heater relay -J925- (646)
• Fuse location 3
• Engine code CAYC

4 - Not used
• Fuse location 4

5 - Terminal 75 power supply relay 1 -J680- (645)
• Fuse location 5
• Through November 2011

6 - Terminal 50 power supply relay -J682- (645)
• Fuse location 6
• Only for vehicles without Start/Stop System, from July 2012

6 - Starter relay 1 -J906- (645)
• Fuse location 6
• Only for vehicles with Start/Stop system
• From July 2012

7 - Terminal 15 power supply relay 2 -J681- (645)
• Fuse location 7

8 - Headlamp dimmer/flasher relay and headlamp flasher -J- (645)
• Fuse location 8

9 - Terminal 15 power supply relay -J329- (645)
• Fuse location 9

10 - Terminal 75 power supply relay 1 -J680- (645)
• Fuse location 10
• from November 2011

11 - Not used
• Fuse location 11

12 - Converter box -J935- (499)
• Fuse location 12
