Front Suspension

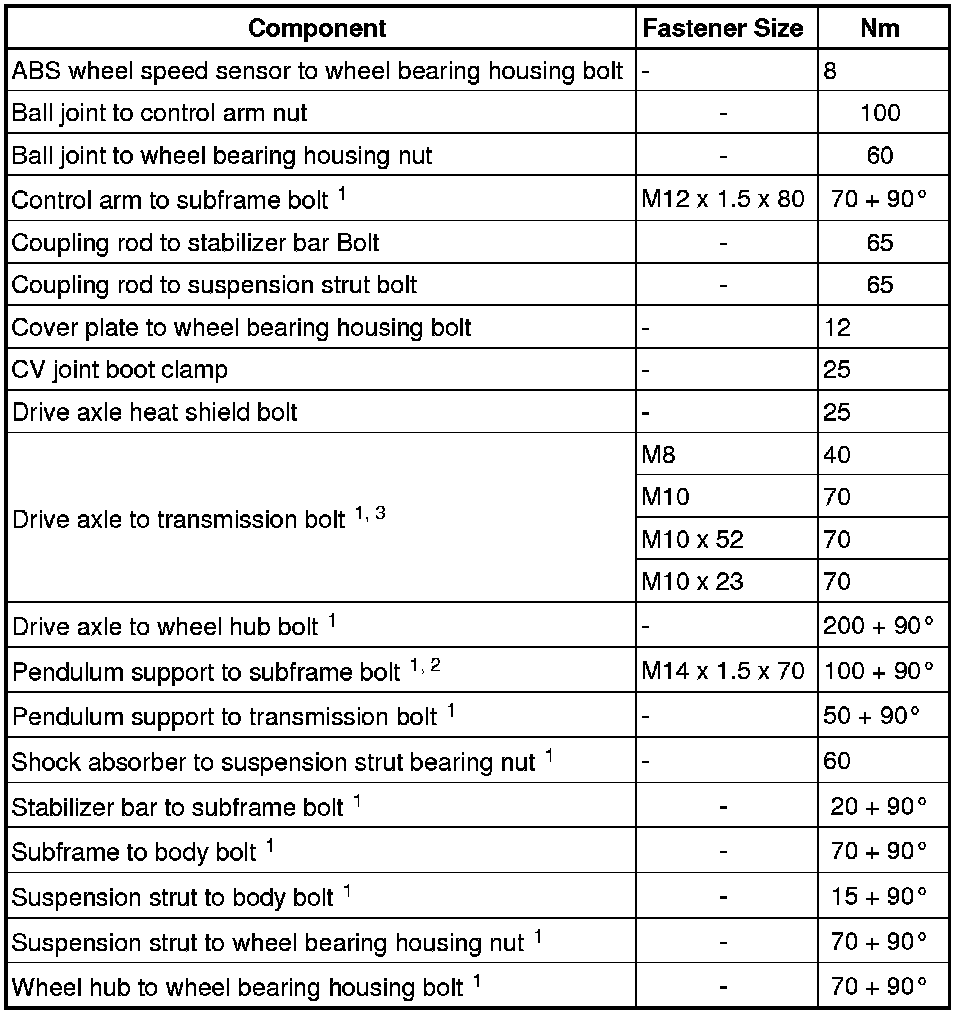

Fastener Tightening Specifications






• 1 Always replace after removal.

• 2 Tighten only when the pendulum support is bolted to the transmission.

• 3 Pre-tighten diagonally to 10 Nm, then tighten diagonally again to the tightening specification.
