Driver Side Window Regulator Switch

Driver Side Window Regulator Switch

Special tools, testers and auxiliary items required

• Trim Removal Wedge (VAS 3409)

Driver side window regulator switch component

• Left Front Window Regulator Switch (E40)

• Right Front Power Window Switch In Driver Door (E81)

• Push Button Illumination (L76)

The components listed above cannot be replaced separately. If faulty, the switch module must be replaced.

• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removing

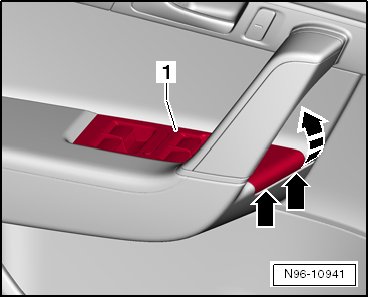

- Release the handle trim - 1 - on the front using (3409) - arrows - in - direction of arrow - and remove it from the door trim panel.

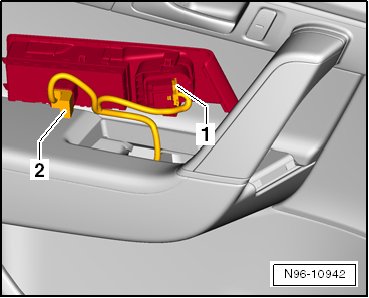

- Disconnect the connector - 1 - and - 2 - and remove the handle trim.

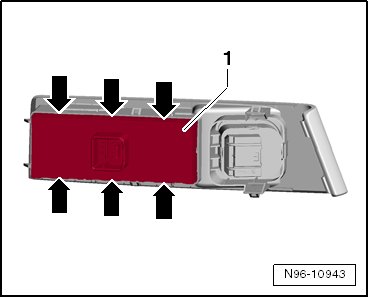

- Release the tabs - arrows - and remove the button module - 1 - from the handle trim.






Installing

Install in reverse order of removal.
