View 1

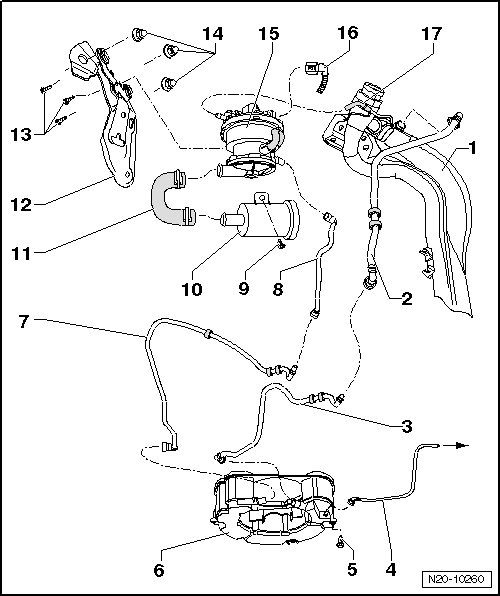

EVAP System Component Overview






1 Fuel Tank

2 Vent Line

• Behind the wheel housing liner.

3 Vent Line

• On the underbody.

4 Vent Line

• To the EVAP canister purge regulator valve 1 (N80).

5 Bolt

• 8 Nm

6 Evaporative Emission (EVAP) Canister

• Installed location: On the bottom of the spare tire wheel well.

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair.

7 Connecting Line

• On the underbody.

8 Connecting Line

• Behind the wheel housing liner.

9 Bolt

• 3 Nm

10 Air Filter

• For the leak detection pump.

11 Connecting Hose

12 Bracket

• For the leak detection pump.

13 Bolt

• 2 Nm

14 Nut

• 6 Nm

15 Leak Detection Pump (V144)

• Installed location: Under the liner in the right rear wheel housing.

• Removing and installing, refer to => [ Leak Detection Pump ] Service and Repair.

• Fuel system, checking for leaks. Refer to => [ Fuel System, Checking for Leaks ] Fuel System, Checking For Leaks.

16 Connector

17 Vacuum Line

• From the intake manifold.
