View 2

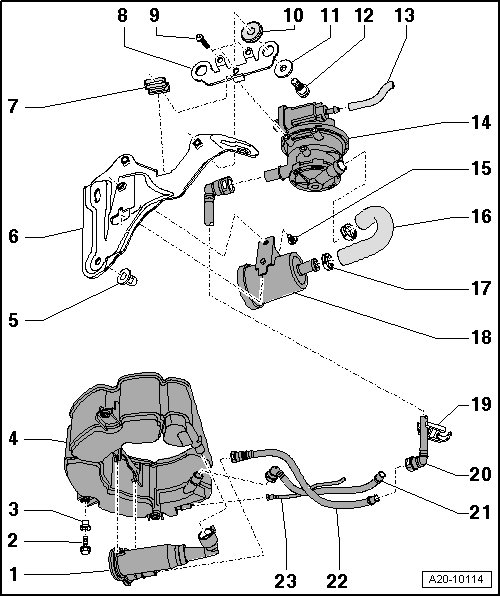

EVAP System Component Overview






1 Evaporative Emission (EVAP) Filter

• Installed only on vehicles with engine code CBUA.

2 Bolt

• 8 Nm

3 Bushing

4 EVAP Canister

• Installed location: On the bottom of the spare tire wheel well.

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair.

5 Nut

• 6 Nm

6 Bracket

7 Mount

8 Bracket

9 Bolt

• 4 Nm

10 Rubber Grommet

11 Washer

12 Bolt

• 8 Nm

13 Vent Line

• To the engine.

14 Leak Detection Pump (V144)

• Installed location: Under the liner in the right rear wheel housing.

• Checking, refer to the vehicle diagnostic tester.

• Removing and installing, refer to => [ Leak Detection Pump ] Service and Repair.

15 Bolt

• 4 Nm

16 Connecting Hose

17 Clamp

18 Air Filter

• For the leak detection pump.

• No maintenance schedule.

19 Bracket

20 Connecting Pipe

• Clipped to the bracket.

• To disconnect, press the release button on the connecting piece.

21 Vent Line

• To the fuel tank filler tube.

• To disconnect, press the release button on the connecting piece.

22 Vent Line

• To disconnect, press the release button on the connecting piece.

23 Vent Line

• To the EVAP canister purge regulator valve 1 (N80).

• To disconnect, press the release button on the connecting piece.
