Firing Order

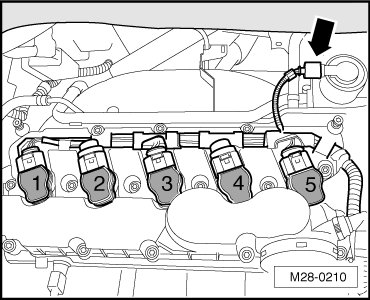

Cylinder Numbering

- Remove the engine cover with air filter. Refer to => [ Engine Cover with Air Filter ] Engine Cover With Air Filter.

• Ignore the - arrow -.






• Cylinder 1 is located opposite the force producing side.
