Towing Module: Service and Repair

Towing Recognition Control Module (J345)

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1783)

The towing recognition control module is installed behind the left side trim in the luggage compartment.

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the left side trim panel inside the luggage compartment..

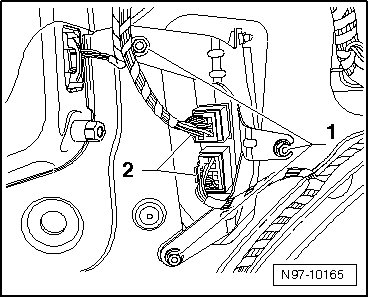

- Disengage connectors - 2 - and disconnect them from Towing Recognition Control Module.






• The number of harness connectors on the Towing Recognition Control Module can deviate from the illustration depending on vehicle equipment.

- Remove the screws - 1 - and remove towing recognition control module with bracket out of the vehicle.

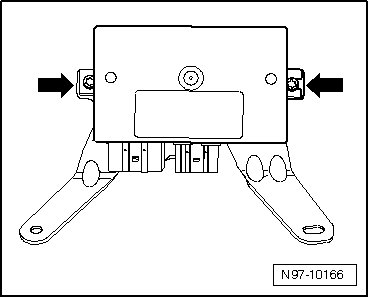

- Remove the screws - arrows - and remove towing recognition control module from the bracket.






Installation

Install in reverse order of removal, noting the following:

• After installing a new towing recognition control module, it must be coded. Refer to => [ Towing Recognition Control Module (J345), Coding ] Towing Recognition Control Module (J345), Coding.
