Subframe Bonded Rubber Bushing, AWD

Subframe Bonded Rubber Bushing, AWD

Special tools, testers and auxiliary items required

• Assembly tool (T10214)

• Assembly tool (T10244)

Pressing Out the Bonded Rubber Bushing

- Remove subframe. Refer to => [ Subframe without Steering Gear ] Subframe Without Steering Gear.

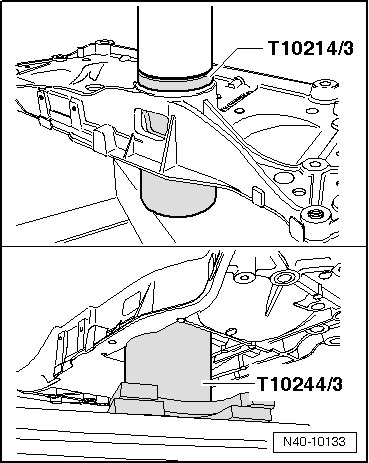

- Press out both bonded rubber bushings at the same time as depicted in the illustration.






• Thrust piece (T10214/3) chamfer must face upward.

• Tube (T10244/3) has a larger and a smaller inner diameter. Subframe must contact larger inner diameter of (T10244/3).

Pressing In the Bonded Rubber Bushing

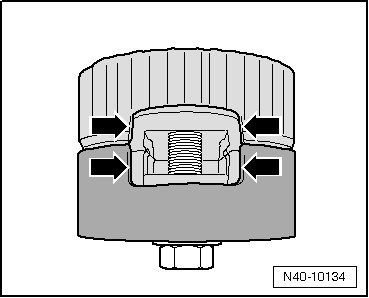

- Bolt both bonded rubber bushings with original bolt, cutouts - arrows - must align when doing this.

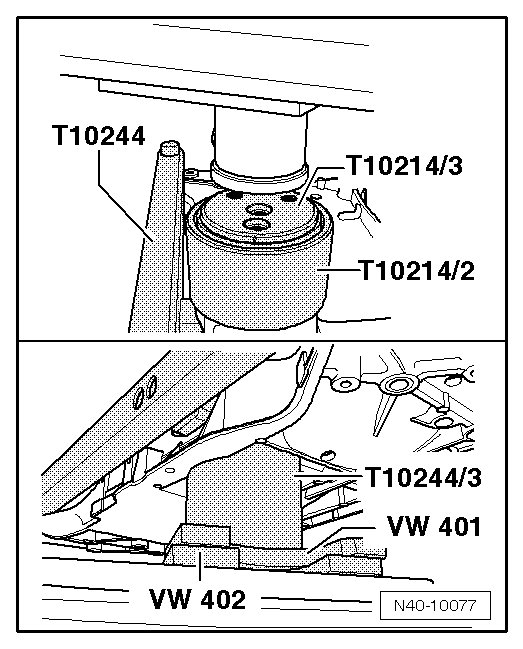

- Insert the bolted bonded-rubber bushing with bolt head facing downward into tube (T10214/2).

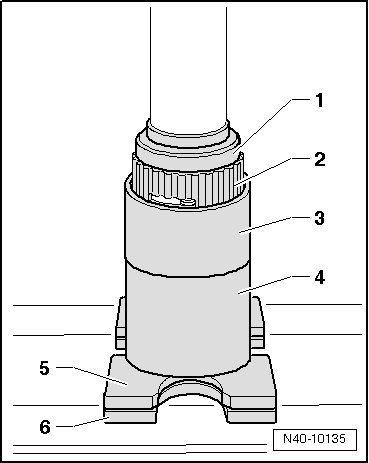

1. Thrust piece (T10214/3)

2. Bonded rubber mount

3. Tube (T10214/2)

4. Tube (T10214/1)

5. Thrust plate (VW 401)

6. Thrust plate (VW 402)


- Press bonded rubber bushing - 1 - in until dimension - a - has been obtained.






Dimension - a - = 2 - 3 mm.

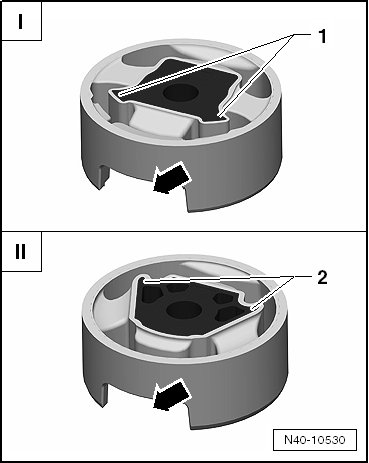

• There are two different versions of the pendulum support bonded rubber bushing: the T version - I - and the V version - II -.






• For the correct allocation, refer to the Electronic Parts Catalog (ETKA).

I The corners on the inner core - 1 - face toward the opening for the pendulum support - arrow - (T version).
II The corners on the inner core - 2 - face away from the opening for the pendulum support - arrow - (V version).

T Version of the Bonded Rubber Bushing






- Align (T10214/2) on subframe with pressed in bonded rubber bushings.

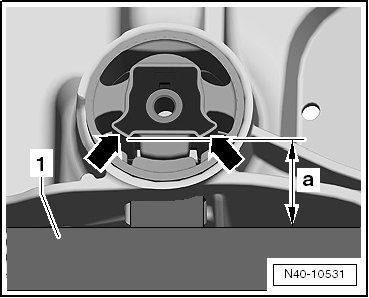

• The corners on the inner core of the bonded rubber bushing - arrows - must face toward the (T10244) - 1 -.

• The corners on the inner core of the bonded rubber bushing - arrows - must lie parallel with the edge of the (T10244) - 1 -.

Distance - a - must be identical at left and right to guarantee parallelism.

V Version of the Bonded Rubber Bushing






- Align tube (T10214/2) on subframe with pressed in bonded rubber bushings.

• The corners on the inner core of the bonded rubber bushing - arrows - must face away from the (T10244) - 1 -.

• The corners on the inner core of the bonded rubber bushing - arrows - must lie parallel with the edge of the (T10244) - 1 -.

Distance - a - must be identical at left and right to guarantee parallelism.

Procedure for Both Versions

- Place subframe on smaller interior diameter of tube (T10244/3).






- Press in bearing on stop and until a pressing force of 20 kN has been obtained.

- Remove (T10244) from subframe and check seating of the pressed in bonded rubber bushing.

• Cutouts of bonded rubber bushings must lie at center in opening of subframe.

• A gap - arrow - between bonded rubber bushings is permitted.






- Install subframe. Refer to => [ Installing ] Subframe Without Steering Gear.
