Power Locks: Service and Repair

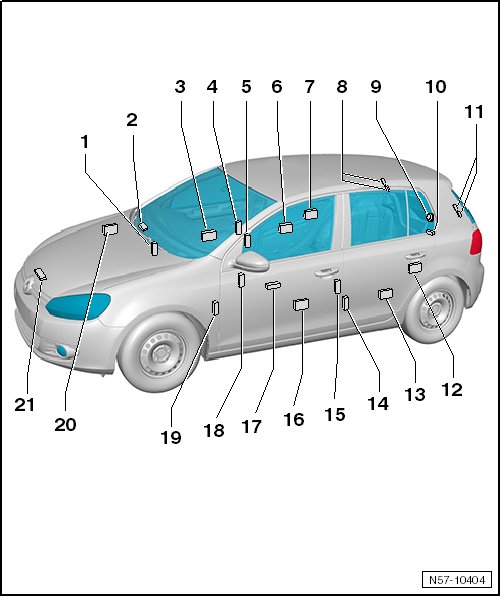

Central Locking Component Overview






1 Coupling Station

• Installed location: right A-pillar.

• Loosen the boot on the pillar to disconnect the connector.

2 Vehicle Electrical System Control Module (J519)

• Installed location: under the instrument panel on the driver side.

3 Front Passenger Door Control Module (J387)

• Integrated in window regulator motor.

• Removing, refer to => [ Front Door Window Regulator Motor ] Service and Repair.

4 Right Front Door Lock

• The door lock is attached to the inner door panel.

• Electrical central locking system is integrated in door lock.

• Removing, refer to => [ Door Lock ] Front Door Lock.

5 Connector Station

• Installed location: right B-pillar

• Loosen the boot on the pillar to disconnect the connector.

6 Driver Door Control Module (J386)

• Integrated in window regulator motor.

• Removing, refer to => [ Rear Door Window Regulator Motor ] Service and Repair.

7 Right Rear Door Lock

• The door lock is attached to the inner door panel.

• Electrical central locking system is integrated in door lock.

• Removing, refer to => [ Door Lock ] Rear Door Lock.

8 Right Rear Lid Connector Station

• Installed location: behind the trim on the C-pillar

9 Unlocking Element with Button

• Installed location: attached in the rear lid.

• Removing, refer to => [ Rear Lid Release Element ] Rear Lid Release Element.

10 Rear Lid Lock

• Installed location: attached to the rear lid.

• Removing, refer to => [ Rear Lid Lock ] Service and Repair.

11 Left Rear Lid Connector Station

• Installed location: behind the trim on the C-pillar

12 Left Rear Door Lock

• The door lock is attached to the inner door panel.

• The power central locking system is integrated in door lock.

• Removing, refer to => [ Door Lock ] Rear Door Lock.

13 Left Rear Door Control Module (J388)

• Integrated in window regulator motor.

• Removing, refer to => [ Rear Door Window Regulator Motor ] Service and Repair.

14 Connector Station

• Installed location: left B-pillar

• Loosen the boot on the pillar to disconnect the connector.

15 Left Front Door Lock

• The door lock is attached to the inner door panel.

• The power central locking system is integrated in door lock.

• Removing, refer to => [ Door Lock ] Front Door Lock.

16 Driver Door Control Module (J386)

• Integrated in window regulator motor.

• Removing, refer to => [ Front Door Window Regulator Motor ] Service and Repair.

17 Central Switch for Window Regulator

• Installed location: inside the door trim panel.

18 Central Locking Button

• Installed location: inside the door trim panel.

19 Coupling Station

• Installed location: left A-pillar

• Loosen the boot on the pillar to disconnect the connector.

20 Alarm Horn (H12)

• In the right front wheel housing.

21 Engine Hood Contact Switch (F266)

• Anti-theft warning system contact switch.

• Installed location: on the latch.
