Connector Overview

Connector Overview

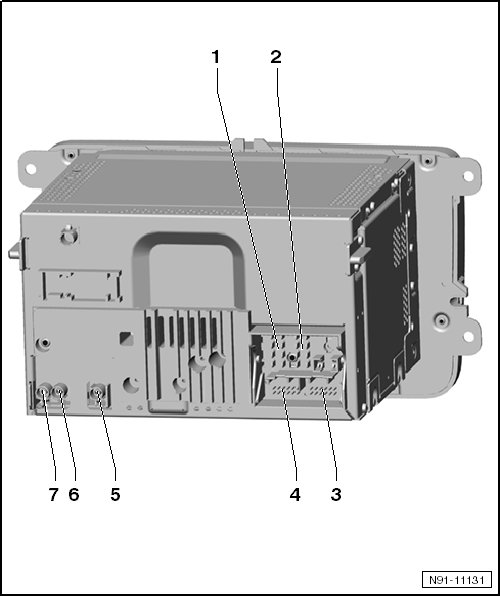

1 - 8-pin Multi-pin Connector 1

• Terminal assignment, refer to=> [ 8-Pin Connector 1, Speaker Outputs ] 8-Pin Connector 1, Speaker Outputs.

2 - 8-pin Multi-pin Connector 2

• Terminal assignment, refer to => [ 8-Pin Connector 2, Voltage Supply Wires and CAN Bus ] 8-Pin Connector 2, Voltage Supply Wires and CAN Bus.

3 - 12-pin Multi-pin Connector 3

• Terminal assignment, refer to => [ 12-Pin Connector 3, Telephone Signals ] 12-Pin Connector 3, Telephone Signals.

4 - 12-pin Multiple Connector 4

• Terminal assignment, refer to => [ 12-Pin Connector 4, CD Changer Control and Audio Input Signals ] 12-Pin Connector 4, CD Changer Control and Audio Input Signals.

5 - Connector 5

• Navigation antenna connection.

• Terminal assignment, refer to => [ Antenna Connections, Connectors 5, 6 and 7 ] Antenna Connections, Connectors 5, 6 and 7.

6 - Connector 6

• Radio reception antenna connection.

• Terminal assignment, refer to => [ Antenna Connections, Connectors 5, 6 and 7 ] Antenna Connections, Connectors 5, 6 and 7.

6 - Connector 7

• Radio reception antenna connection.

• Terminal assignment, refer to => [ Antenna Connections, Connectors 5, 6 and 7 ] Antenna Connections, Connectors 5, 6 and 7.
