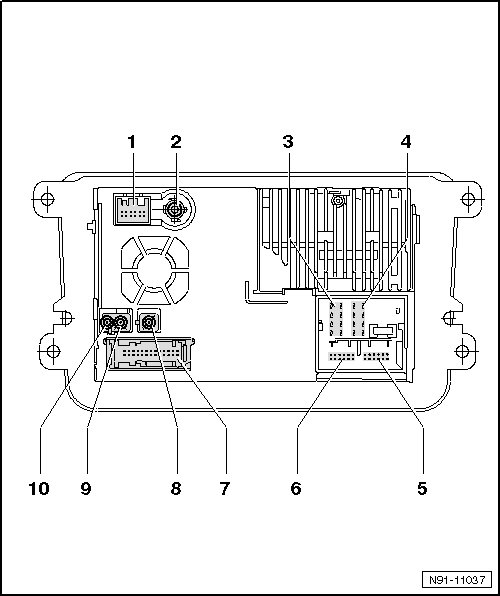

Connector Overview

Connector Overview






1 Navigation Connection, Japan

• not used

2 Antenna Connection

• Input connector for the DAB antenna, optional

3 Multi-pin Connector 1, 8-pin

• Terminal assignment, refer to => [ 8-Pin Connector 1, Speaker Outputs ] 8-Pin Connector 1, Speaker Outputs

4 Multi-pin Connector 2, 8-pin

• Terminal assignment, refer to => [ 8-Pin Connector 2, Voltage Supply Wires and CAN Bus ] 8-Pin Connector 2, Voltage Supply Wires and CAN Bus

5 Multi-pin Connector 3, 12-pin

• Terminal assignment, refer to => [ 12-Pin Connector 3, Telephone and Microphone Signals ] 12-Pin Connector 3, Telephone and Microphone Signals

6 Multi-pin Connector 4, 12-pin

• Terminal assignment, refer to => [ 12-Pin Connector 4, CD Changer Control and Audio Input Signals ] 12-Pin Connector 4, CD Changer Control and Audio Input Signals

7 26-pin Connector

• Terminal assignment, refer to => [ 26-Pin Connector 5, Audio and Video ] 26-Pin Connector 5, Audio and Video

8 Antenna Connection

• For navigation

• For additional information, refer to=> [ Connector Overview Antenna Connections 8 through 10 ] Connector Overview Antenna Connections 8 Through 10

9 Antenna Connection

• FM 2 antenna

• For additional information, refer to => [ Connector Overview Antenna Connections 8 through 10 ] Connector Overview Antenna Connections 8 Through 10

10 Antenna connection

• FM/AM antenna

• For additional information, refer to => [ Connector Overview Antenna Connections 8 through 10 ] Connector Overview Antenna Connections 8 Through 10
