Relay Arrangements On Electronics Box Low

Relay

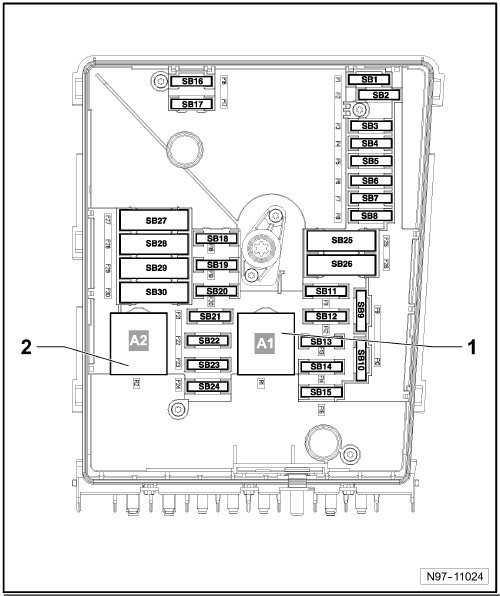

Relay Arrangements on Electronics Box Low







1 - Terminal 30 power supply relay -J317- (458)
• Connection A1

1 - Motronic engine control module power supply relay -J271-
• Connection A1

2 - Secondary air pump relay -J299- (100, 66)
• Connection A2

2 - Connection bridge
• Connection A2
• Only diesel engines
