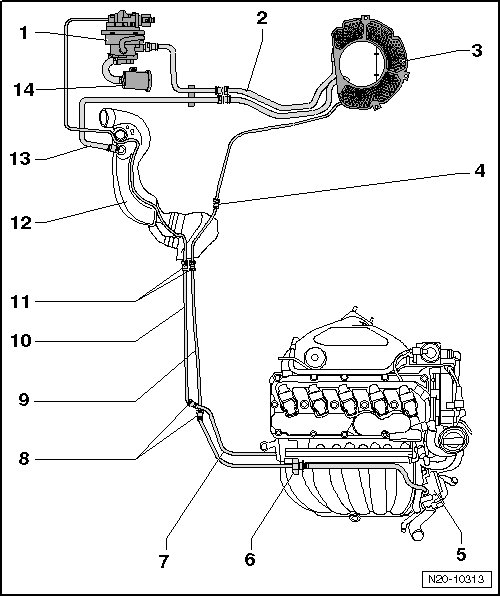

EVAP System Schematic Overview






1 Leak Detection Pump (V144)

• Installed location: Under the liner in the right rear wheel housing.

• Checking, refer to the vehicle diagnostic tester.

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair.

2 Connecting Line

• From the leak detection pump to the Evaporative Emission (EVAP) canister.

• Attached to the bracket.

3 Evaporative Emission (EVAP) Canister

• Installed location: On the bottom of the spare tire wheel well.

• Vehicles with engine code CBUA have an additional filter - item 1 - in the => [ EVAP System Component Overview ] EVAP System Component Overview installed.

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair.

4 Separating Point

• On the back of the fuel tank, on the right side.

5 Throttle Valve Control Module (J338)

6 EVAP Canister Purge Regulator Valve 1 (N80)

• Checking, refer to the vehicle diagnostic tester.

7 Vacuum Line

• Connected to the intake manifold.

8 Separating Point

• In the front of the engine compartment on the right side, under the coolant expansion tank.

9 Vent Line

• White

• From the EVAP canister to the EVAP canister purge regulator valve 1.

• Installed position: On the right side of the underbody.

• Attached to the fuel tank.

10 Vacuum Line

• Green

• From the engine to the leak detection pump.

• Installed position: On the right side of the underbody.

• Attached to the fuel tank.

11 Separating Point

• In front of the fuel tank on the right side, near the fuel filter.

12 Filler Tube

13 Vent Line

• From the filler tube to the EVAP canister.

14 Air Filter

• For the leak detection pump.
