Driver Window Regulator Switch Module

Driver Window Regulator Switch Module

Special tools, testers and auxiliary items required

• Trim Removal Wedge (VAS 3409)

• When removing and installing components in a visible area (switches, covers, trim, etc.), mask off the areas at which a prying tool ( (VAS 3409) , screwdriver) will be positioned, using commercially available adhesive tape.

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the driver side door trim panel..

- Carefully pry installation frame out of door trim - arrow - using (VAS 3409) or a screwdriver.

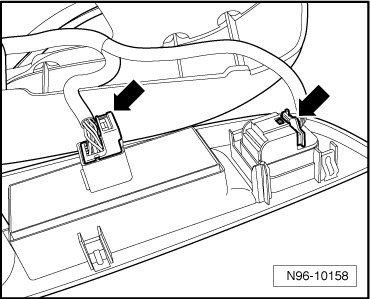

- Disconnect the connectors - arrows -.






- Disengage retaining tabs - arrows - and remove switch from installation frame.






Installation

Installation is performed in the reverse order of removal.
