Front Door Window Regulator: Locations

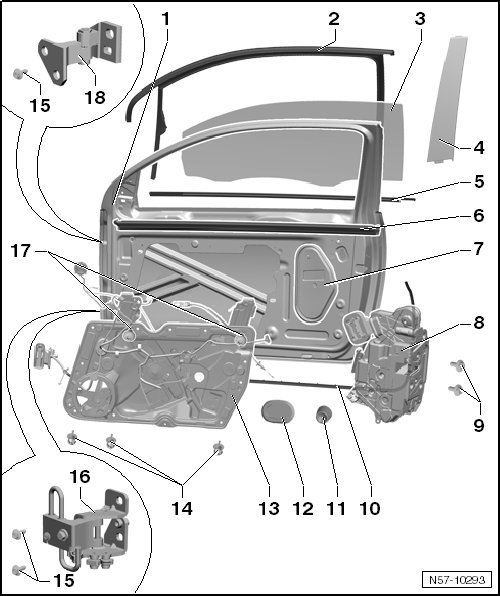

Front Door Overview






1 Door

• Removing and installing, refer to => [ Door ] Front Door.

• Adjusting, refer to => [ Door, Adjusting ] Adjustments.

2 Window Guide

• Removing and installing, refer to => [ Front Door Window Guide ] Front Door Window Guide.

3 Door Window

• Removing and installing, refer to => [ Front Door Window ] Front Door Window.

4 Trim

• Removing and installing, refer to => [ Trim ] .

5 Outer Window Recess Seal

• Removing and installing, refer to => [ Outer Window Recess Seal ] Outer Window Recess Seal.

6 Inner Window Recess Seal

• Removing and installing, refer to => [ Inner Window Shaft Strip ] Service and Repair.

7 Cover

• Only on the 2-door model

• Removing and installing, refer to => [ Cover, 2-Door Vehicle ] Cover, 2-Door Vehicle.

8 Door Lock

• Door lock can only be removed in conjunction with subframe

• Removing and installing, refer to => [ Door Lock ] Front Door Lock.

9 Bolt

• Tightening specification: 20 Nm

• Quantity: 2

10 Outer Door Seal

• Removing and installing on a 2-door model, refer to => [ Outer Door Seal, 2-Door Vehicle ] Outer Door Seal, 2-Door Vehicle.

• Removing and installing on a 4-door model, refer to => [ Outer Door Seal, 4-Door Vehicle ] Outer Door Seal, 4-Door Vehicle.

11 Buffer

12 Cover

13 Subframe

• Removing and installing, refer to => [ Subframe ] Subframe.

• With window regulator.

14 Clips

• For mounting the subframe

15 Bolt

• For the hinge mount, there are different tightening specifications.

16 Bottom Door Hinge

• With a door arrester

• The hinge is not separated.

17 Bolt

• Tightening specification: 8 Nm

• For mounting the window regulator inside the door.

18 Upper Door Hinge

• The hinge is not separated.
