Windshield Washer System Overview

Windshield Washer System Overview

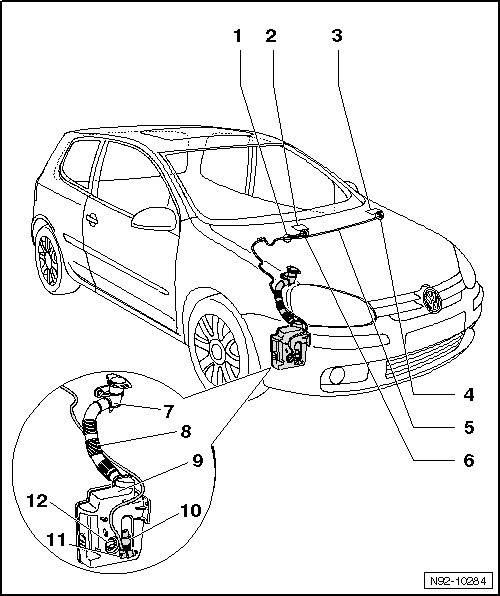

• Three different versions of reservoir for windshield washer and headlamp cleaning systems are installed, depending on the vehicle equipment level. Illustration shows the version for vehicles without parking heater.






1 Y-Connection

• Divides washer fluid line to the windshield washer spray nozzles.

2 Right Spray Nozzle For Windshield Washer System

• Removing and installing, refer to => [ Windshield Spray Nozzles ] Windshield Spray Nozzles.

• Adjusting, refer to => [ Windshield Washer System Spray Nozzles, Adjusting ] Adjustments.

3 Left Spray Nozzle For Windshield Washer System

• Removing and installing, refer to => [ Windshield Spray Nozzles ] Windshield Spray Nozzles.

• Adjusting, refer to => [ Windshield Washer System Spray Nozzles, Adjusting ] Adjustments.

4 Angle Coupling

• Connection at spray nozzle for windshield washer system, left.

5 Hose

• Hose repair, refer to => [ Hoses, Repairing ] Hoses, Repairing.

6 Angle Coupling

• Connection at spray nozzle for windshield washer system, right.

7 Filler Tube For Tank For Windshield Washer System and Headlamp Cleaning System

• Removing and installing, refer to => [ Windshield and Headlamp Washer Fluid Reservoir Filler Neck ] Windshield and Headlamp Washer Fluid Reservoir Filler Neck.

8 Filler Tube Connecting Tube To Reservoir

• Removed and installed together with reservoir.

9 Washer Fluid Reservoir

• Removing and installing, refer to => [ Windshield and Headlamp Washer System Reservoir ] Windshield and Headlamp Washer System Reservoir.

• Removing and installing (GTI), refer to => [ Windshield and Headlamp Washer Fluid Reservoir, GTI ] Windshield and Headlamp Washer Fluid Reservoir, GTI.

10 Windshield and Rear Window Washer Pump (V59)

• Removing and installing, refer to => [ Windshield and Rear Window Washer Pump (V59) ] Service and Repair.

11 Angle Coupling

• Connection to Windshield and Rear Window Washer Pump (V59).

12 Windshield Washer Fluid Level Sensor (G33)

• Removing and installing, refer to => [ Windshield Washer Fluid Level Sensor (G33) ] Service and Repair.

No Illustration

• Windshield and headlamp washer fluid reservoir to body - 8 Nm.
