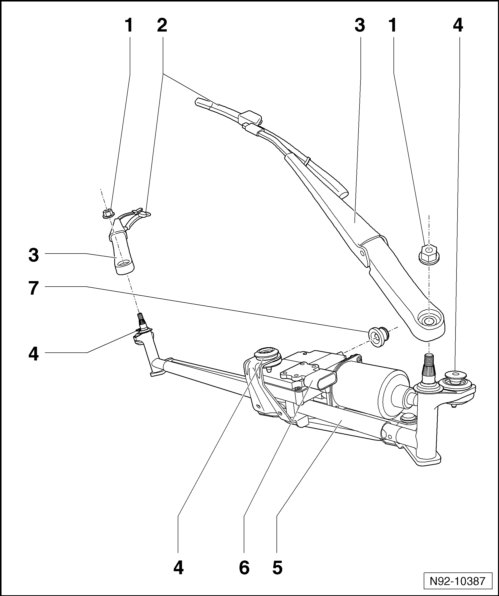

Windshield Wiper System Overview

Windshield Wiper System Overview






1 - Mounting Nuts, Wiper Arm To Linkage

• 20 Nm

2 - Windshield Wiper

• Removing and installing, refer to => [ Joint-Free Windshield Wiper ] Service and Repair.

• Adjusting park position, refer to => [ Windshield Wiper Blades, Adjusting Park Position ] Windshield Wiper Blades, Adjusting Park Position.

3 - Wiper Arms

• Removing and installing, refer to => [ Windshield Wiper Arms ] Windshield Wiper Arms.

4 - Bolts For Wiper Frame With Linkage To Body

• 8 Nm

5 - Wiper Frame With Linkage

• Removing and installing, refer to => [ Wiper Frame with Linkage and Wiper Motor, Removing ] Wiper Frame With Linkage and Wiper Motor, Removing.

6 - Windshield Wiper Motor (V) with Wiper Motor Control Module (J400)

• For removing and installing the wiper frame, refer to => [ Wiper Motor ] Wiper Motor.

• Wiper Motor Control Module Coding/Deactivating the APP Function, refer to => [ Wiper Motor Alternating Park Position Function, Deactivating ] Testing and Inspection.

7 - Rubber Grommet In The Bulkhead

• Note installation instructions, refer to => [ Windshield Wiper System ] Windshield Wiper System.

No Illustration

• Screws, windshield wiper motor to wiper frame and linkage - 8 Nm.

• Windshield wiper motor crank to windshield wiper motor shaft - 18 Nm.
