Interior Rearview Mirror Assembly Overview

Interior Rearview Mirror Assembly Overview

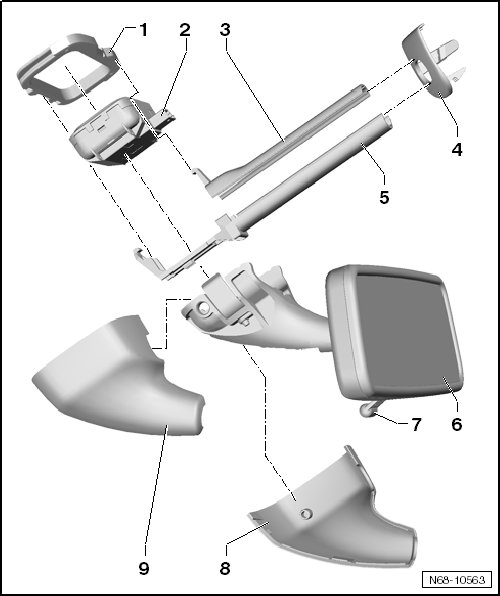

Manual Dimming

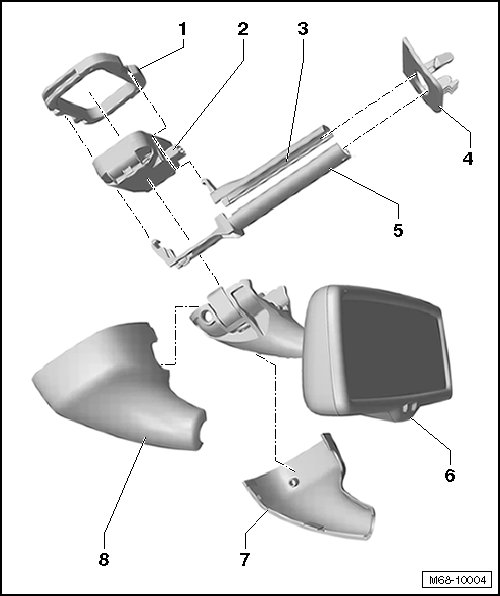

1 Retaining plate

• Mirror base retaining plate

• Glued to the windshield

• Interior Rearview Mirror Retaining Plate, Servicing, refer to => [ Interior Rearview Mirror Retaining Plate, Servicing ] Interior Rearview Mirror Retaining Plate, Servicing

2 Rain/Light Recognition Sensor (G397)

• Sensor

• Code the sensor.

3 Upper cable guide

• Attached to the retaining plate => [ (Item 1) Retaining plate ]

• Installed in the trim => [ (Item 4) Trim ]

• Removing and Installing, refer to => [ Automatic Dimming Interior Rearview Mirror with Rain Sensor ] Automatic Dimming Interior Rearview Mirror with Rain Sensor

4 Trim

• Roof trim panel trim

• Removing and Installing, refer to => [ Automatic Dimming Interior Rearview Mirror with Rain Sensor ] Automatic Dimming Interior Rearview Mirror with Rain Sensor

5 Lower cable guide

• Attached to the retaining plate => [ (Item 1) Retaining plate ]

• Installed in the trim => [ (Item 4) Trim ]

• Removing and Installing, refer to => [ Automatic Dimming Interior Rearview Mirror with Rain Sensor ] Automatic Dimming Interior Rearview Mirror with Rain Sensor

6 Interior Rearview Mirror

• with automatic dimming function

• Removing and Installing, refer to => [ Automatic Dimming Interior Rearview Mirror with Rain Sensor ] Automatic Dimming Interior Rearview Mirror with Rain Sensor

7 Right mirror base trim

• Removing and Installing, refer to => [ Automatic Dimming Interior Rearview Mirror with Rain Sensor ] Automatic Dimming Interior Rearview Mirror with Rain Sensor

8 Left mirror base trim

• Removing and Installing, refer to => [ Automatic Dimming Interior Rearview Mirror with Rain Sensor ] Automatic Dimming Interior Rearview Mirror with Rain Sensor

• The automatically dimming interior rearview mirror dims progressively when the driver is blinded from the rear.

• It consists of a mirror element and an electrical element with two photo sensors.

• The electronic element registers light incidence from the front and rear through the photo sensors.

• If the incident light from the rear is greater than that from the front, a current flows through the electronic element to a conductive coating.

• The applied current will change the color of the electrolytes. The higher the voltage, the darker the electrolyte. The incident light will be reflected to a lesser degree.

• When the reverse gear is engaged, the dimming function is switched off so the mirror can be used, for example, to back out of a dark garage.
