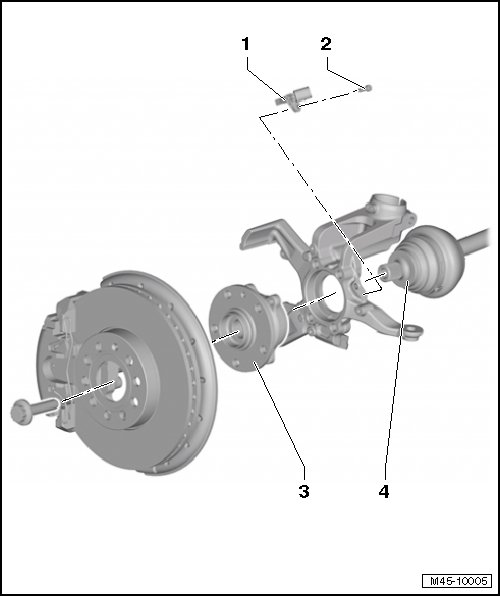

Front ABS Wheel Speed Sensor Overview

Front ABS Wheel Speed Sensor Overview






1 Front ABS Wheel Speed Sensor

• Clean the inside of the hole and coat it with hot bolt paste (G 052 112 A3) before installing the sensor.

• Removing and installing, refer to => [ Front ABS Wheel Speed Sensor ] Front ABS Wheel Speed Sensor.

2 Bolt

• 8 Nm

3 Wheel Bearing Unit

• The ABS sensor ring is installed in the wheel bearing.

4 Drive Axle
