Engine Assembly

Special Tools

Special tools, testers and auxiliary items required

• Adapter (10-222 A/7)

• Support Bracket (10-222 A/31)

• Adapter (10-222 A/28-2)

• Spring Type Clip Pliers (VAS 6499)

• Socket, Multipoint Bit XZN 14 (T10061)

• Insert Tool 18 mm (T10179)

• Hose Clamps Up to 25 mm Dia. (3094)

• Lifting Tackle (3033)

• Engine Support (3269)

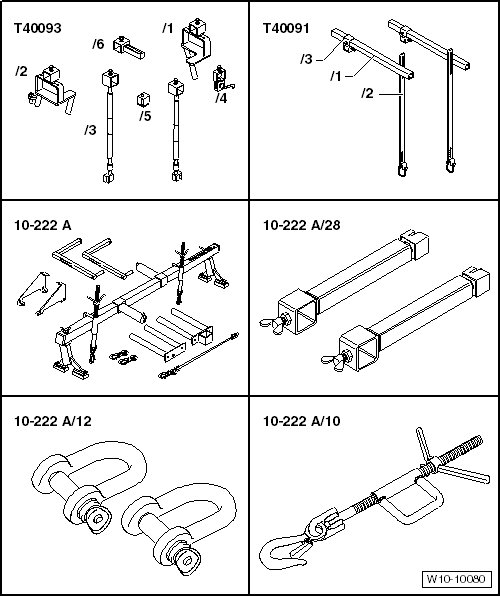

Special tools, testers and auxiliary items required

• Mount (T40093/5) , from the Engine Support Supplement Set (T40093)

• Moveable Joint (T40093/4) , from the Engine Support Supplement Set (T40093)

• Moveable Joint (T40091/3) , from the Engine Support Basic Set (T40091)

• Rail with Holes (T40091/2) , from the Engine Support Basic Set (T40091)

• Square Pipe (T40091/1) , from the Engine Support Basic Set (T40091)

• Engine Support Bridge (10-222 A)

• Adapter (10-222 A/28)

• Shackle (10-222 A/12)

• Bracket with Spindle and Hook (10-222 A/10)

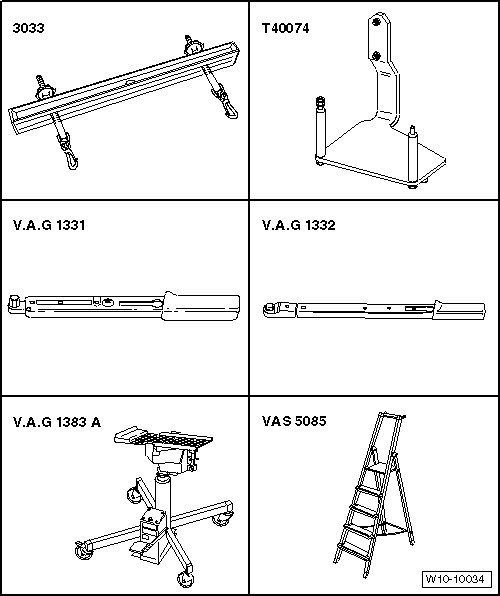

Special tools, testers and auxiliary items required

• Lifting Tackle (3033)

• Engine Support (T40074)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Step Ladder (VAS 5085)

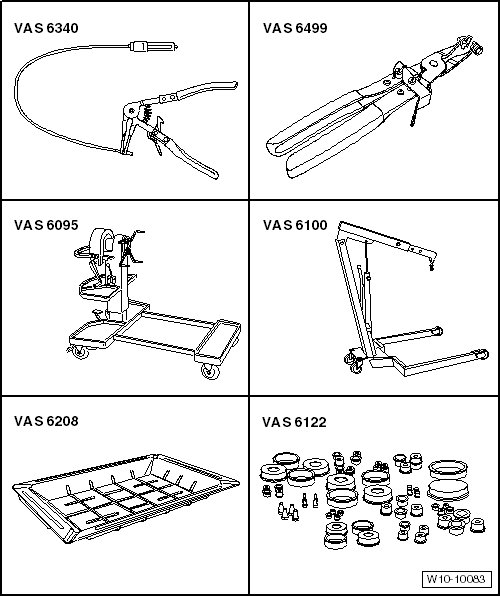

Special tools, testers and auxiliary items required

• Hose Clip Pliers (VAS 6340)

• Spring Type Clip Pliers (VAS 6499)

• Engine and Transmission Holder (VAS 6095)

• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)

• Drip Tray for VAS 6100 (VAS 6208)

• Engine Bung Set (VAS 6122)
