Cornering Lamp: Service and Repair

Fog Lamp Bulb and Static Cornering Lamp

• The following illustrations depict removal and installation at left fog lamp.

• It is necessary to remove the right wheel housing liner in order to remove the right headlamp bulb.

Removing

Remove the engine spray protection.

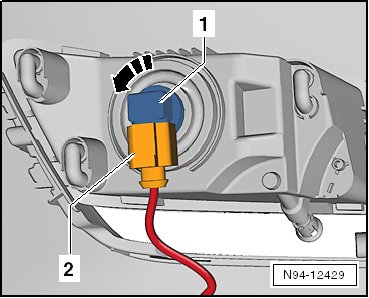

- Disconnect the connector - 2 - from the bulb socket - 1 -.






- Turn the bulb socket - 1 - in - direction of arrow - and remove it.

• The bulb is permanently attached to the bulb socket and cannot be replaced separately.

Bulbs: H8 12 V/35 W

Installing

Install in reverse order of removal. Note the following:

- Check and adjust the fog lamp adjustment.
