Battery Overview

Risk of injury. Observe the warnings and safety precautions. Refer to => [ Warnings and Safety Precautions ] Service Precautions!

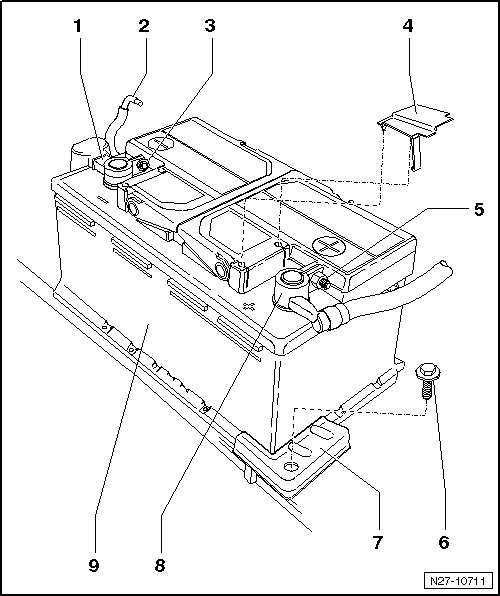

1 Battery Terminal Clamp Ground Wire

• For more information regarding the battery poles, refer to => [ Battery Post/Terminal ] Battery Post/Terminal.

2 Central Venting System Hose

• Follow the installation information.

3 Mounting Nut For Battery Terminal Clamp Ground Wire

• 6 Nm

• M6

4 Positive Terminal Cover

5 Mounting Nut For Battery Terminal Clamp Positive Wire

• 6 Nm

• M6

6 Mounting Bolt, Clamping Plate

• 35 Nm

• M8 x 35

7 Clamping Plate

8 Battery Terminal Clamp Positive Wire

• For more information regarding the battery poles, refer to => [ Battery Post/Terminal ] Battery Post/Terminal.

9 Battery (A)

• Battery, disconnecting and connecting, refer to => [ Battery, Disconnecting and Connecting ] Service and Repair.

• Removing and installing, refer to => [ Battery ] Battery.
