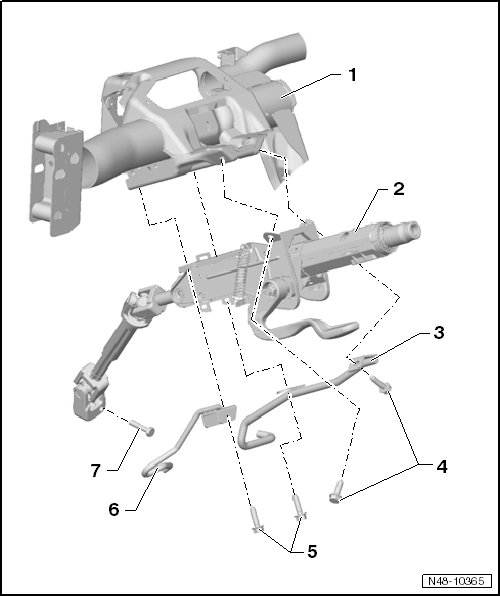

Steering Column Assembly Overview

• Welding and straightening work on supporting or wheel carrying components of the suspension is not permitted.

• Always replace self-locking nuts.

• Always replace corroded bolts/nuts.






1 Assembly Carrier With Bracket

2 Steering Column

• Removing and Installing, refer to => [ Steering Column ] Steering Column

3 Brake Pedal Crash Brace

• Allocation, refer to the Parts Catalog

4 Bolt

• 20 Nm

• Follow tightening sequence => [ Tighten the bolts , , and one after the other to the to the tightening specification. ] Steering Column

5 Bolt

• 20 Nm

• Follow tightening sequence => [ Tighten the bolts , , and one after the other to the to the tightening specification. ] Steering Column

6 Clutch Pedal Crash Brace

• Allocation, refer to the Parts Catalog

7 Bolt

• 30 Nm

• Always replace if removed.
