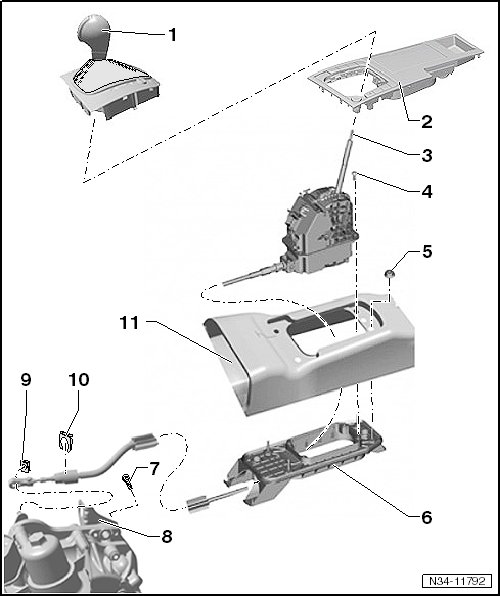

Selector Mechanism Overview

Selector Mechanism Overview






1 Selector Handle with Cover

• Do not remove the handle unnecessarily. For emergency release, only the cover must be removed. Refer to => [ Emergency Release from ] Emergency Release from "P".

• Removing and installing, refer to => [ Selector Lever Handle ] Selector Lever Handle.

2 Center Console Cover

• For the selector mechanism.

• Removing and installing.

3 Selector Mechanism with Selector Lever Cable

• With an integrated selector lever sensor system control module, with the selector lever, Tiptronic switch, selector lever park position lock switch and shift lever solenoid.

• The selector lever cable can only be replaced together with the selector mechanism.

• Do not grease the selector lever cable.

• Removing and installing, refer to one of the following:

=> [ Selector Mechanism and Cable, with the Selector Housing ] Selector Mechanism and Cable, with the Selector Housing.

=> [ Selector Mechanism and Cable, without the Selector Housing ] Selector Mechanism and Cable, without the Selector Housing.

• Checking, refer to => [ Selector Lever Cable, Checking ] Selector Lever Cable, Checking.

• Adjusting, refer to => [ Selector Lever Cable, Adjusting ] Adjustments.

4 Bolt

• 8 Nm

5 Nut

• 8 Nm

• Quantity: 4

6 Selector Housing

• Available only together with the selector mechanism, refer to the Parts Catalog.

7 Bolt

• 20 Nm + an additional 90° (1/4) turn.

• Always replace.

• Quantity: 2

• For securing the cable bracket to the transmission.

8 Cable Bracket

• For the selector lever cable.

9 Lock Washer

• Always replace after removing.

10 Lock Washer

• Always replace after removing.

• Installed position: The offset side faces forward, toward the front of the vehicle.

11 Tunnel/Body
