Automatically Shifted Manual Transmission/Transaxle: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Engine Sling (2024 A)

• Shackle (10-222 A/12)

• Transmission Support Jig (3336)

• Transmission Support (VW 353)

• Holding Plate (VW 309)

• Hose Clamps Up to 40 mm (3093)

• Transmission Support (3282)

• Adjustment Plate (3282/42A)

• Pin (3282/29)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Engine-/Gearbox Jack (V.A.G 1383 A)

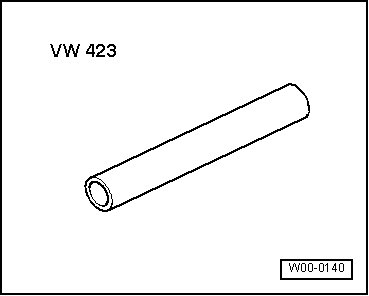

• Sleeve (VW 423)

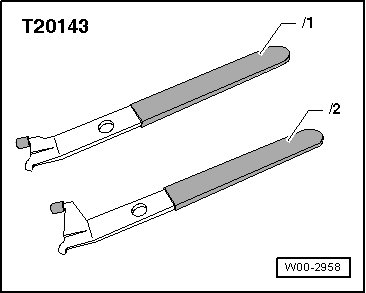

• Pulling Hook (T20143)

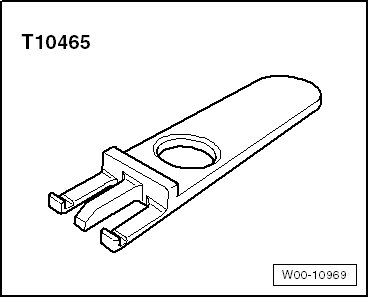

• Release Tool (T10465)

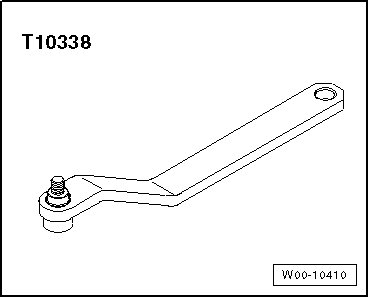

• Bracket (T10338)











Special tools, testers and auxiliary items required

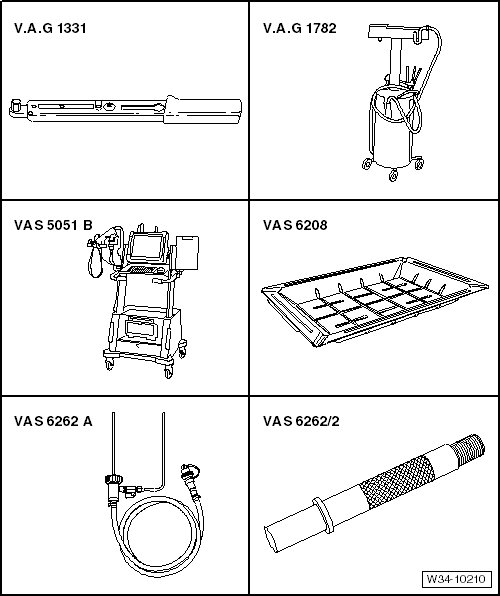

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Used Oil Collecting and Extracting Device (V.A.G 1782)

• Vehicle Diagnostic Tester, for example (VAS 5051)

• Drip Tray for VAS 6100 (VAS 6208)

• Adapter for Oil Filling (VAS 6262 A)

• Adapter for Filling ATF Oil (VAS 6262/2)

• Adapter for Oil Filling (VAS 6262/6)






Special tools, testers and auxiliary items required

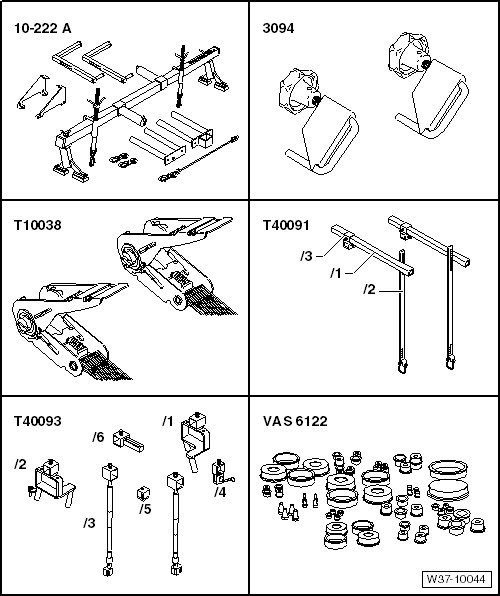

• Engine Support Bridge (10-222 A)

• Hose Clamps Up to 25 mm Dia. (3094)

• Tensioning Strap (T10038)

• Engine Support Basic Set (T40091)

• Engine Support Supplement Set (T40093)

• Engine Bung Set (VAS 6122)
