Transmission Mount: Service and Repair

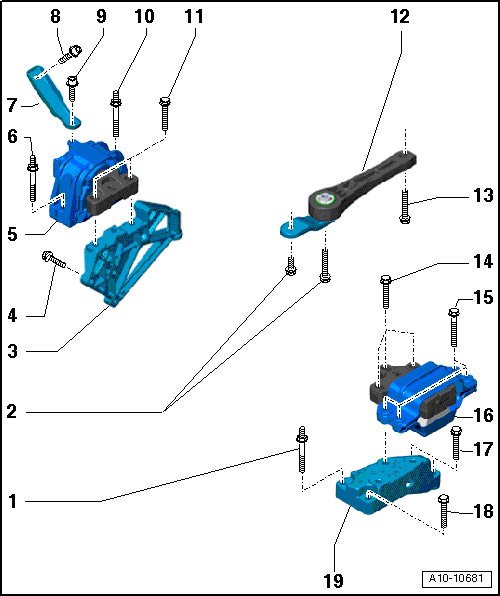

Engine and Transmission Mounts Overview






1 Bolt

• 40 Nm + an additional 90° (1/4) turn.

• Always replace.

• Transmission mount bracket to transmission.

2 Bolt

• Pendulum support to transmission.

3 Engine Mount Bracket

4 Bolt

• Engine mount bracket to engine.

5 Engine Mount

6 Bolt

• Engine mount to body.

7 Support

8 Bolt

• Support to body.

9 Bolt

• Support to engine mount.

10 Bolt

• Engine mount to body.

11 Bolt


• Engine mount to engine mount bracket.

12 Pendulum Support

13 Bolt

• Pendulum support to subframe.

14 Bolt

• 60 Nm + an additional 90° (1/4) turn.

• Always replace.

• Transmission mount to transmission mount bracket.

15 Bolt

• Transmission mount to body.

16 Transmission Mount

• Check the adjustment.

17 Bolt

• 40 Nm + an additional 90° (1/4) turn.

• Always replace.

• Transmission mount bracket to transmission.

18 Bolt

• 40 Nm + an additional 90° (1/4) turn.

• Always replace.

• Transmission mount bracket to transmission.

19 Transmission Mount Bracket
