Starter Cable: Locations

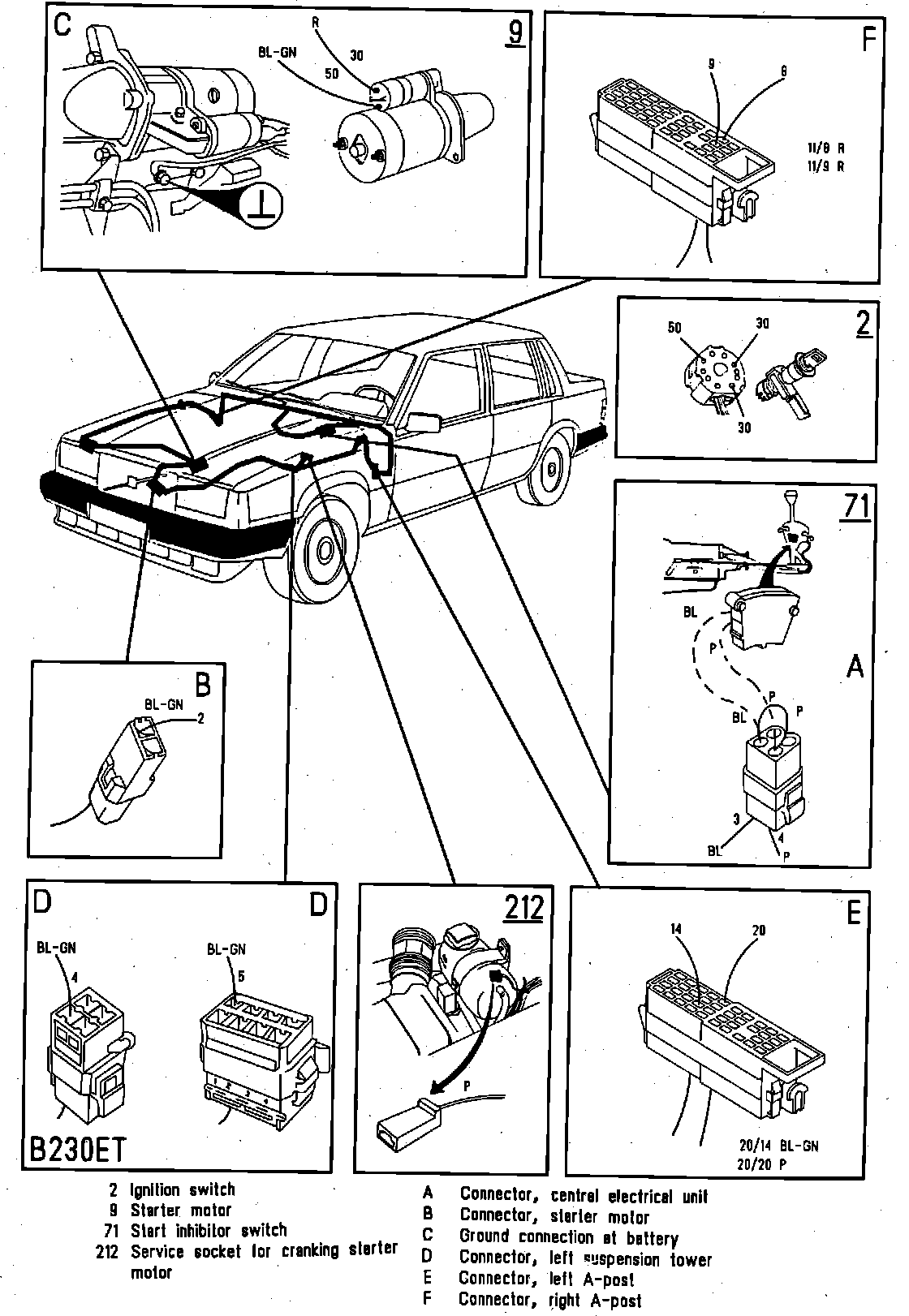

Starting System Components.:




LH Side Of Engine Compartment

Applicable to: 740 & 760 Models
