EZ 116 K Ignition

Ignition System Components:

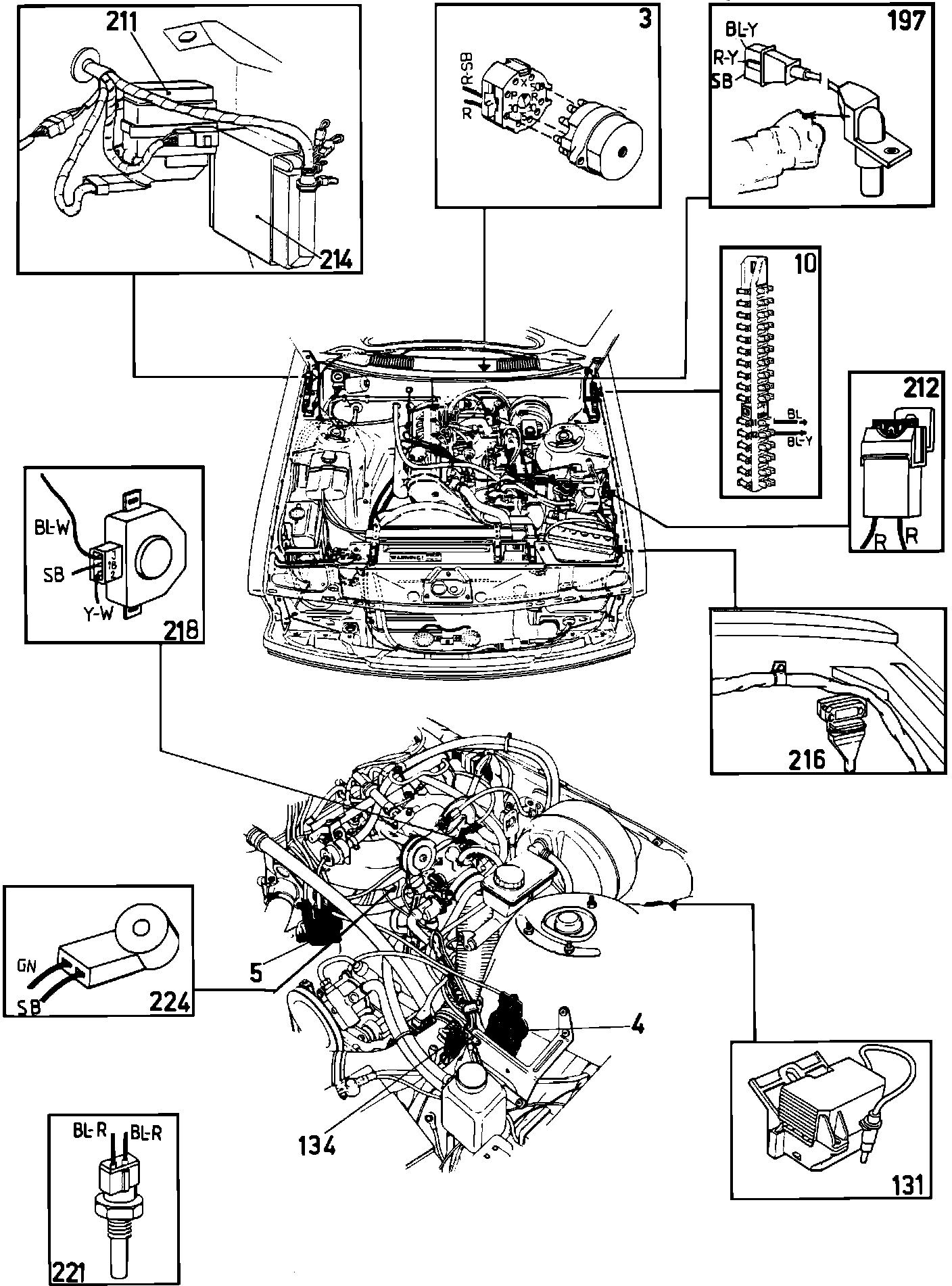

Numbers in parenthesis ( ) refer to component numbers on the image.

COIL WIRE
Between ignition coil (4) and distributor cap (5).

CRANKSHAFT POSITION SENSOR
Top of transmission bell housing (197).

DISTRIBUTOR
Left front side of engine (5).

DISTRIBUTOR CAP
Attached to top of distributor (5).

DISTRIBUTOR ROTOR
Under distributor cap (5).

IGNITION COIL
Attached to front side of left strut tower (4).

IGNITION CONTROL MODULE
Inside passenger compartment on right front firewall (211).

KNOCK SENSOR
Left side of engine block, beneath #2 intake runner (224).

POWER STAGE
Left front fender, next to battery (216).

SPARK PLUG WIRES
Routed over valve cover from distributor cap (5) to spark plugs (not shown).

SPARK PLUGS
Right side of cylinder head. (Not shown)
