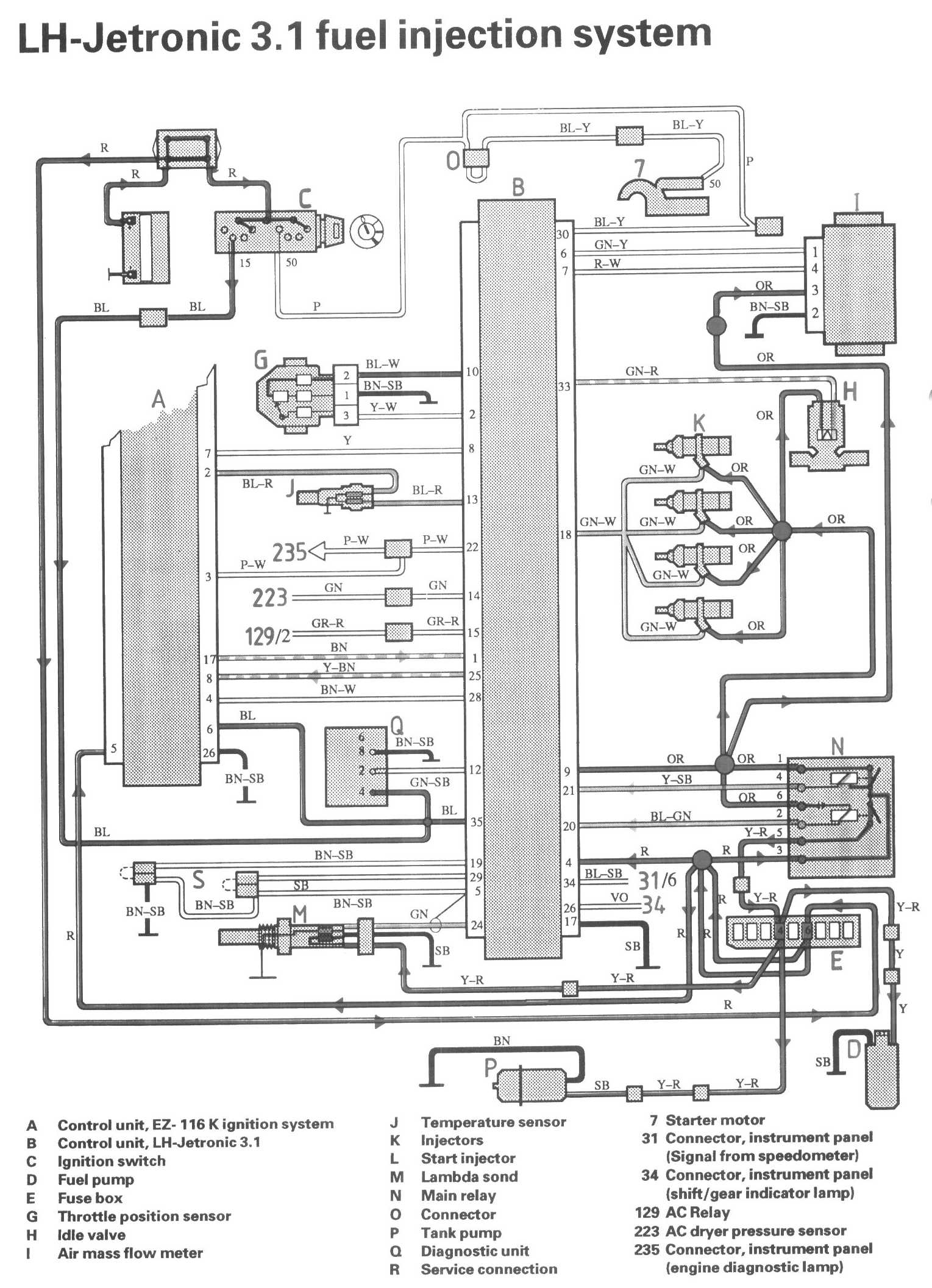

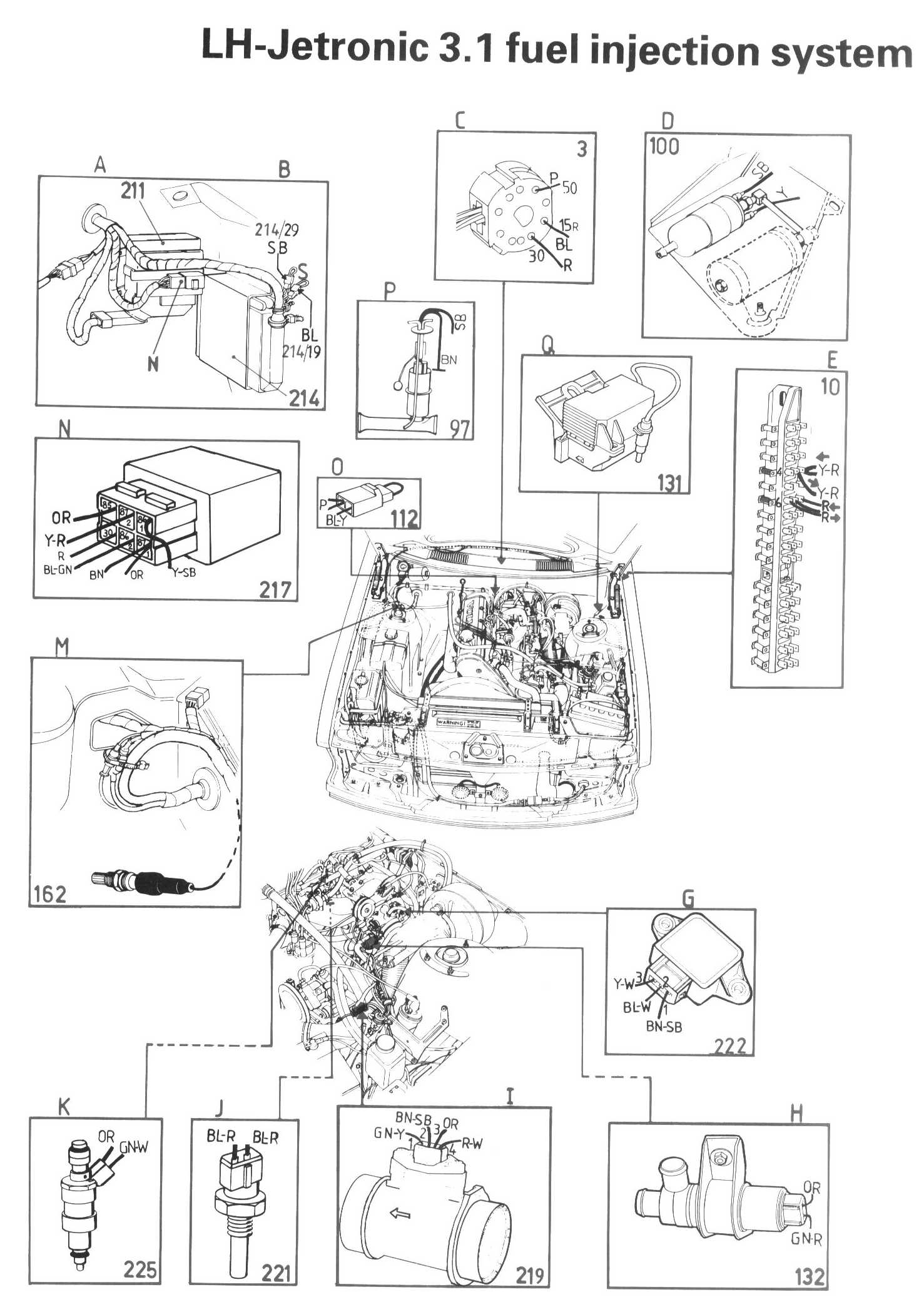

Fuel Injection LH-Jetronic 3.1

LEGEND
A Control unit. EZ-116K ignition system
B Control unit. LH-Jetronic 3.1
C Ignition switch
D Fuel pump
E Fusebox
G Throttle position sensor
H Idle valve
I Air mass flow meter
J Temperature sensor
K Injectors
L Start injector
M Lambda sond
N Main relay
O Connector
P Tank pump
Q Diagnostic unit
R Service connection

7 Starter motor

31 Connector. instrument panel (Signal from speedometer)
34 Connector. instrument panel (shift/gear indicator lamp)

129 AC Relay
223 AC dryer pressure sensor
235 Connector. instrument panel (engine diagnostic lamp)
