Electrical Diagrams

On-Board Diagnosis Wiring:

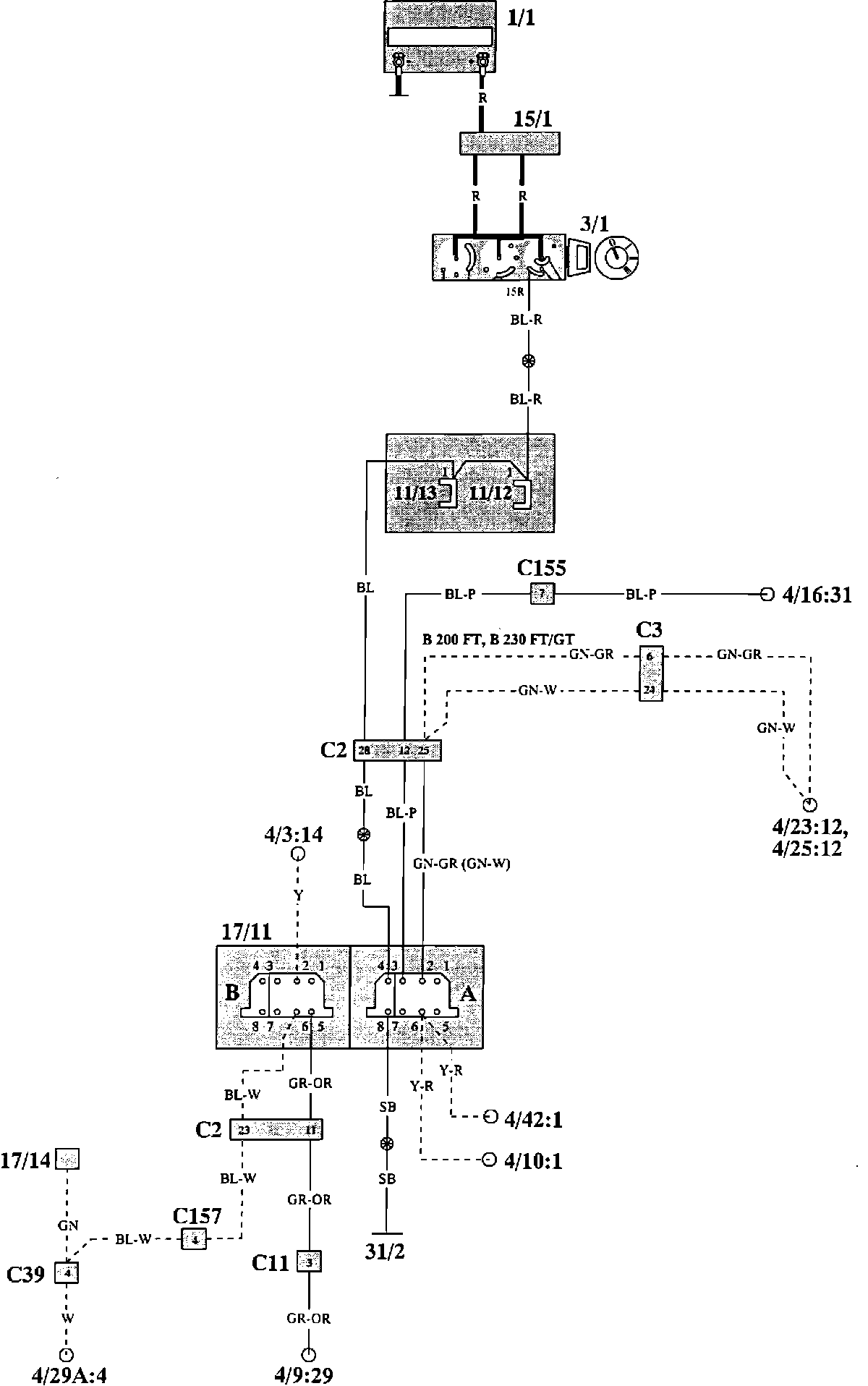

Wiring Diagram

On-Board Diagnosis Components:

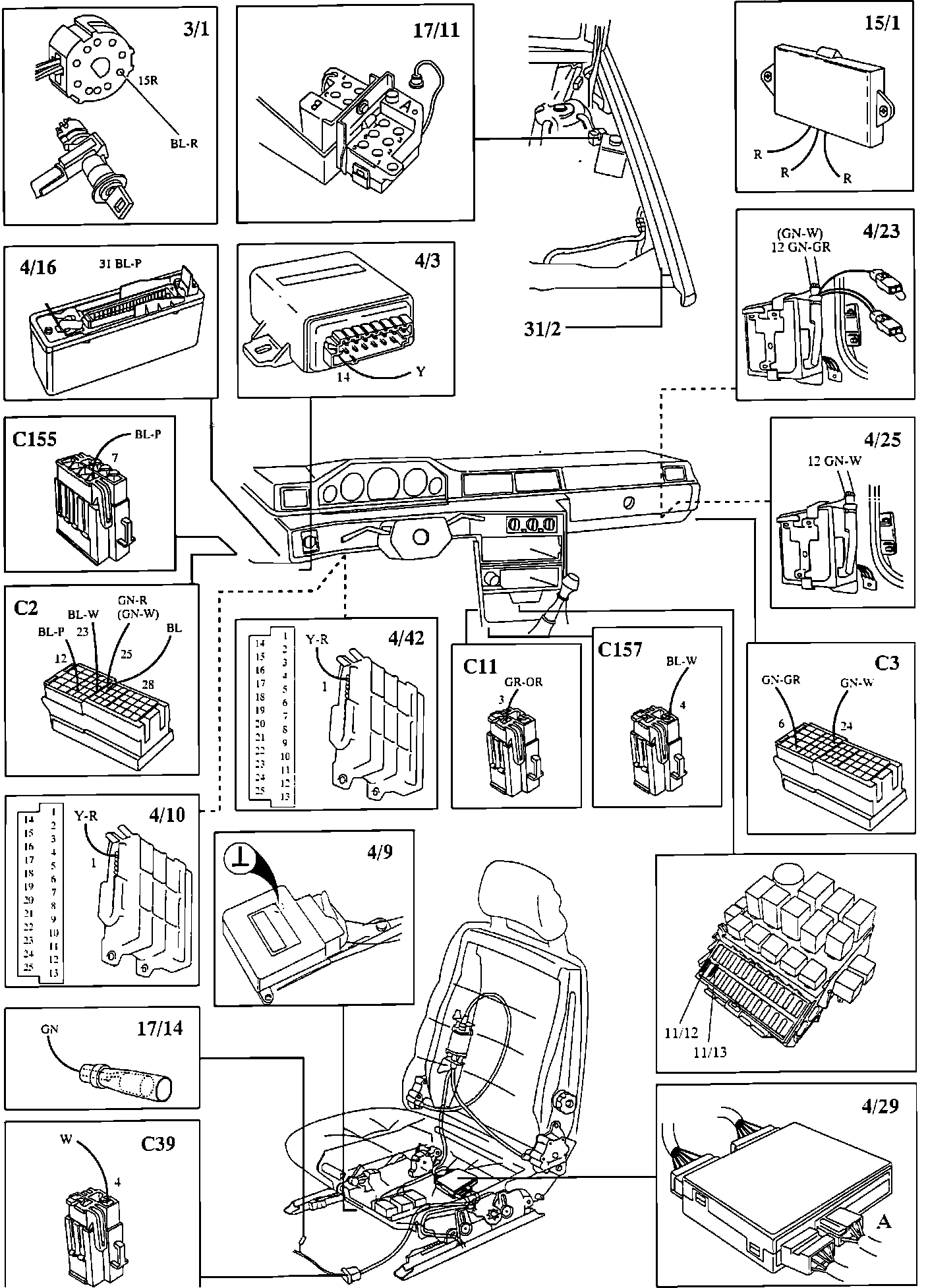

Component Locations
