Home >> Volvo >> 1992 >> 740 L4-2.3L SOHC VIN 88 B230F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Fuel Injection System >> Regina (Bendix)

Regina (Bendix)

Regina (B230 F):

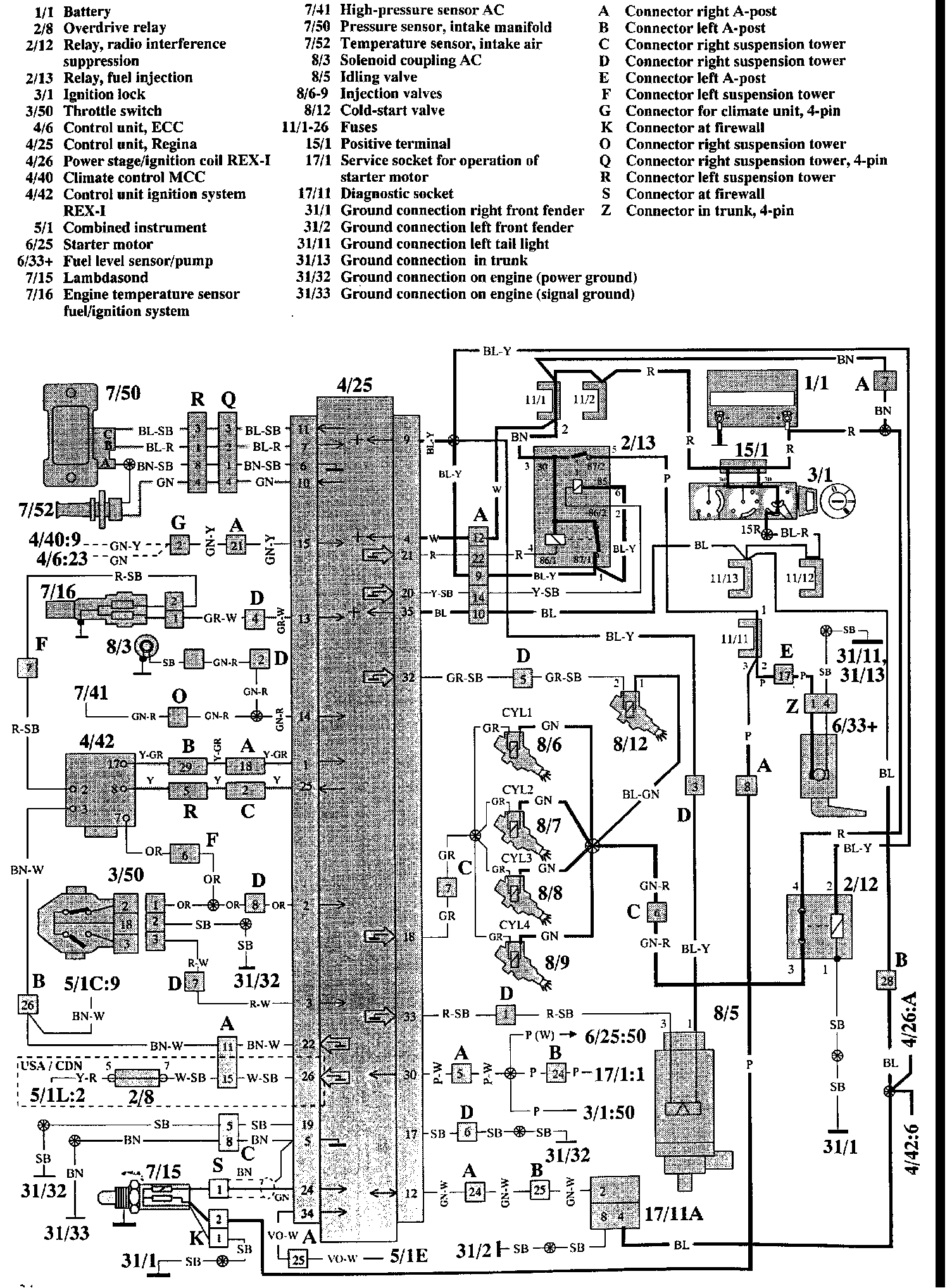

Wiring Diagram


Regina (B 230 F):

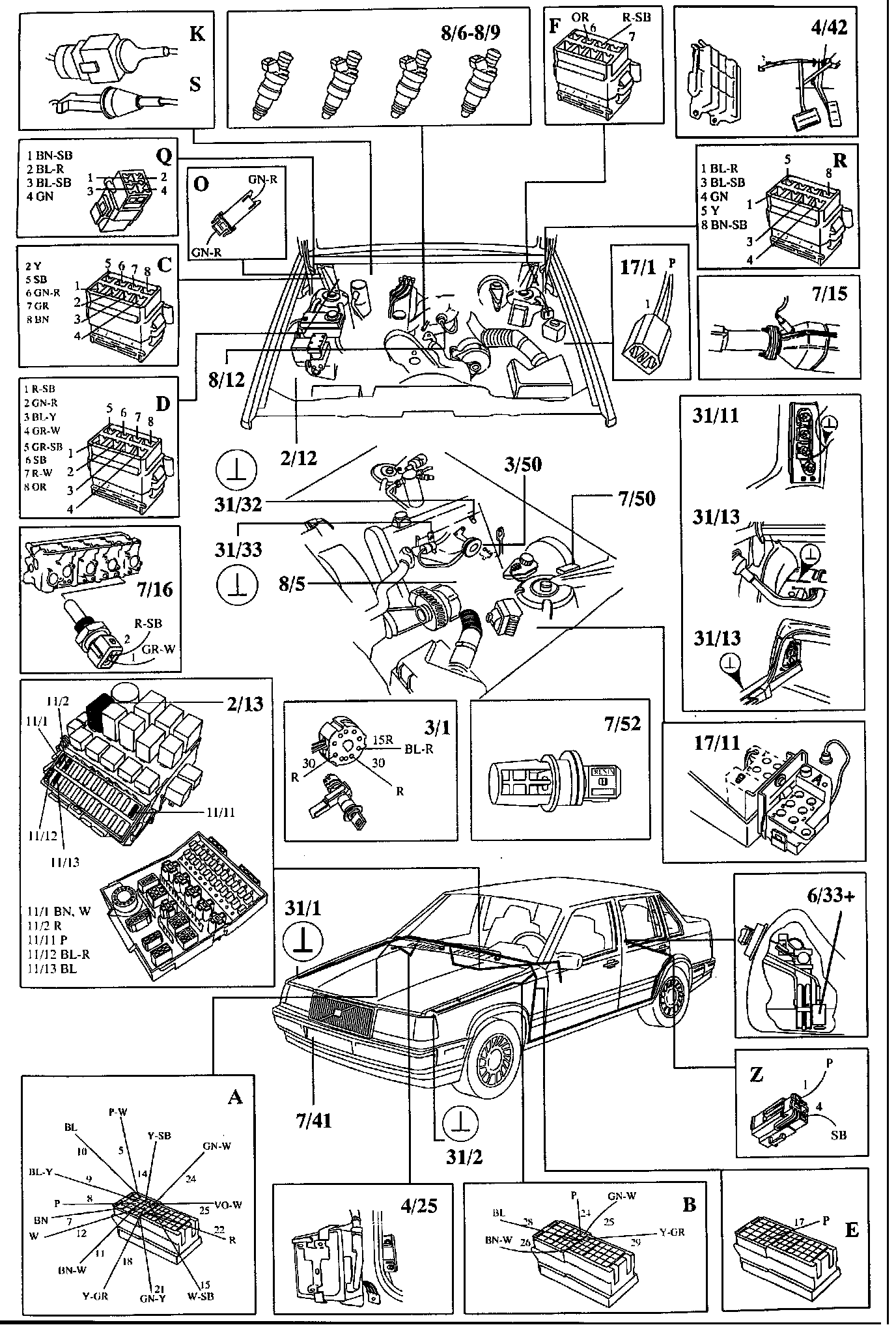

Component Locations
