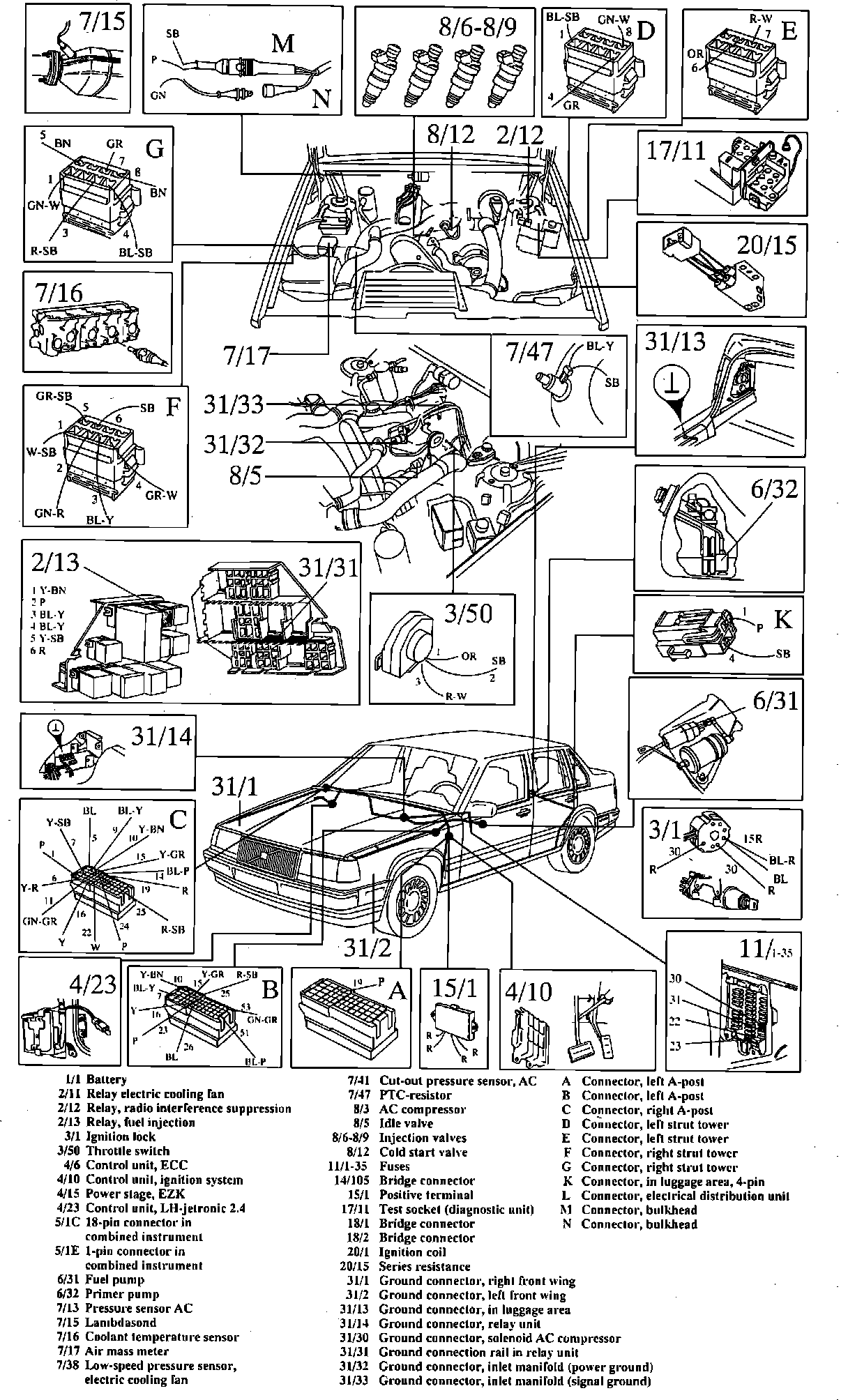

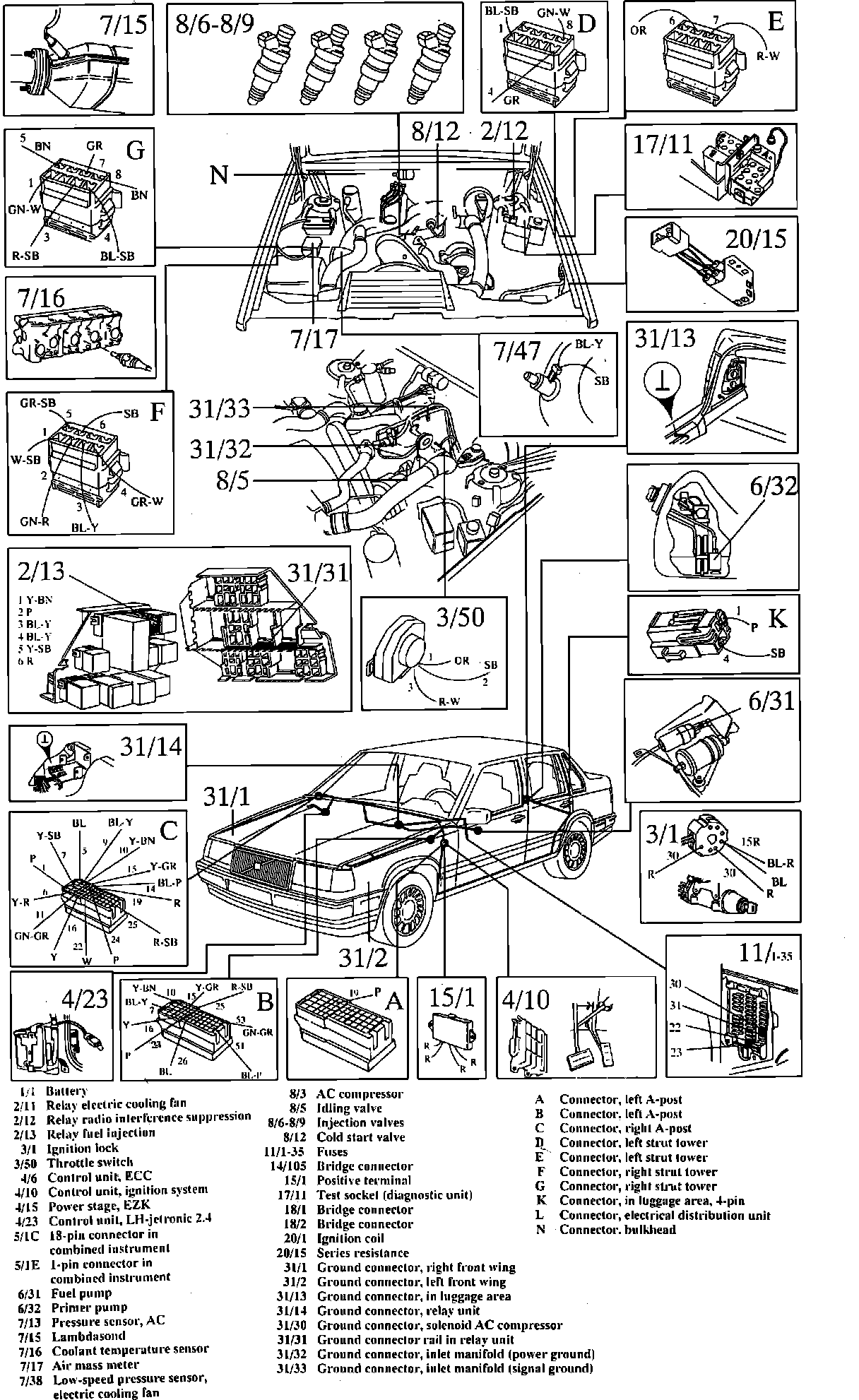

Low Pressure Sensor / Switch: Locations

RH Rear Side Of Engine Compartment

Applicable to: B230FT/GT & D24TIC Engine

Electronic Climate Control (ECC) Components.:

RH Rear Side Of Engine Compartment

Applicable to: B204FT Engine

RH Rear Side Of Engine Compartment

Applicable to: B6304F/G Engine

LH Jetronic 2.:

RH Rear Side Of Engine Compartment

Applicable to: 4 System Components. B230FT Engine

LH Jetronic 2.:

RH Rear Side Of Engine Compartment

Applicable to: 4 System Components. B230GT Engine

Turbo Control Unit (TCU) System Components (Part 1 of 2).:

Turbo Control Unit (TCU) System Components (Part 1 of 2).:

RH Rear Side Of Engine Compartment

Applicable to: B204FT Engine
