Brake Pad: Testing and Inspection

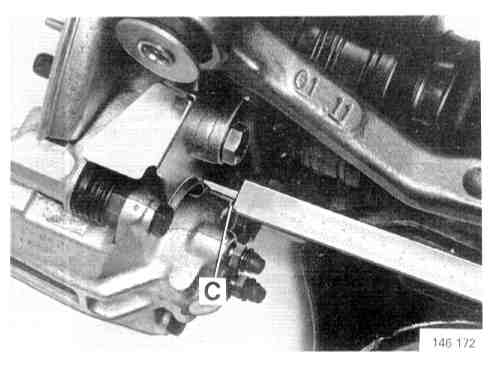

The brake pad thickness can be measured on the multilink rear axle caliper. This is carried out by measuring the distance between point C and the face of the shield between the bearing housing mounting lugs and caliper retainer. The measurement must not exceed 25 mm (0.98 inches).
