EGR Valve: Locations

Rear Of Engine:

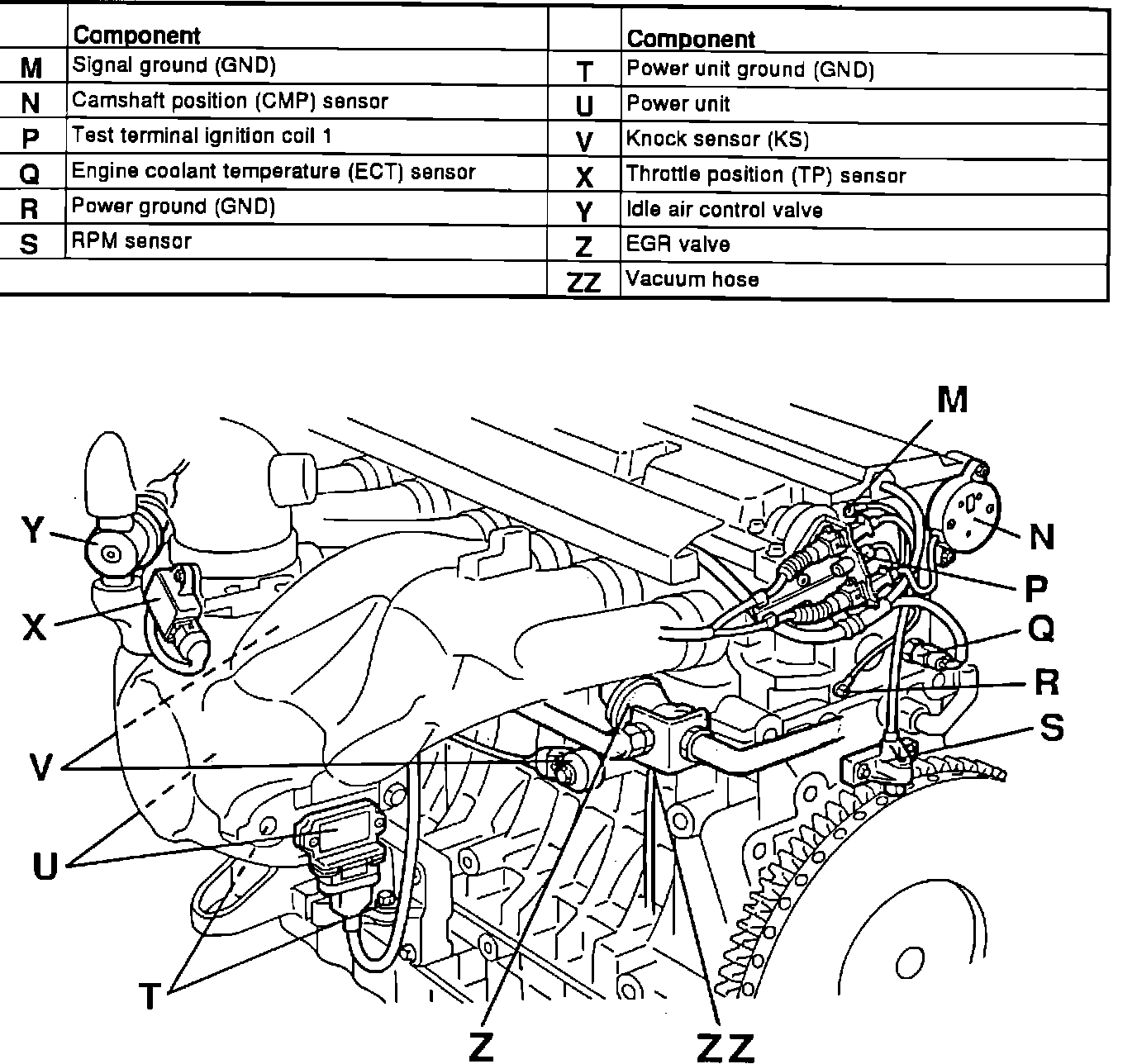

The EGR valve is located at left rear of engine, beneath the intake manifold. (Z)
