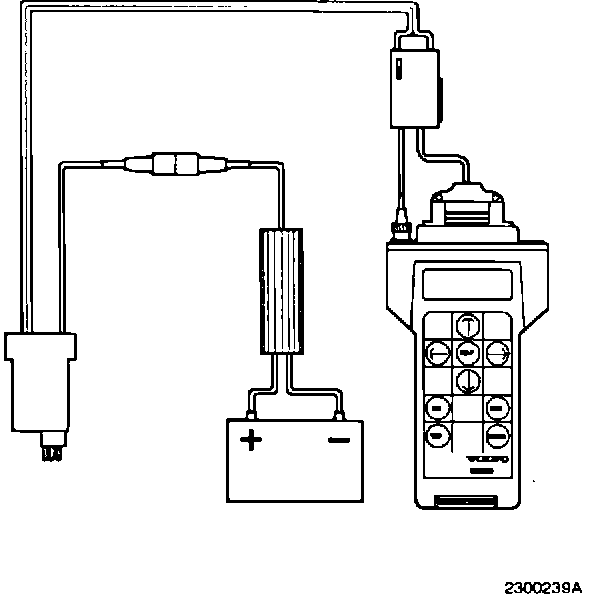

Connection of Vst

- Switch off ignition.

- Insert program cassette.

- Connect adapter lead p/n 9511340-3 to tester and to diagnostic unit A or B, as appropriate.

- Connect power supply lead to battery.
Attach red cable clip to positive terminal.

- Switch on supply to tester using, switch on adapter lead box.

- Switch ignition on.
